• LMK08UU Flange Linear Motion Ball Bearing 8x15x24mm Right Angled View
  • LMK08UU Flange Linear Motion Ball Bearing 8x15x24mm Front View
  • LMK08UU Flange Linear Motion Ball Bearing 8x15x24mm Side View

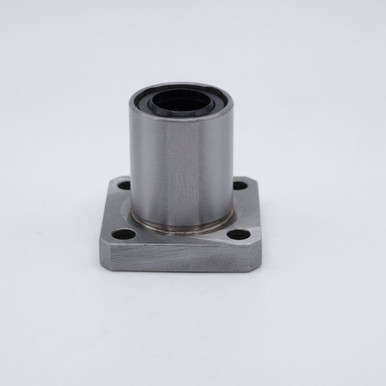

  • LMK08UU Flange Linear Motion Ball Bearing 8x15x24mm Standing Side View
  • LMK08UU Flange Linear Motion Ball Bearing 8x15x24mm Bottom View

    • LMK08UU Flange Linear Motion Ball Bearing 8x15x24 LMK8UU

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    LMK08UU
    Minimum Purchase:
    100 units
    Inner Diameter:
    8mm
    Outer Diameter:
    15mm
    Length:
    24mm
    Closure Type:
    Rubber Sealed
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Light Oil
    Static Load:
    882 lbf
    Dynamic Load:
    573 lbf
    Country of Origin:
    China
    Interchange Numbers:
    LMK08UU, LMK08GUU, LK08UU, SMK08GUU, LHFR08, FTB08UU, NFED-08VUU

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    LMK08UU Square Flange Linear Ball Bearing

    Key Features

    LMK08UU is a Square Flanged Linear Ball Bearing manufactured to have both sides Rubber Sealed, pre-lubricated with Light Oil and a resin retainer. Our Linear Motion Bearings are offered in both metric and inch sizes, open and adjustable types with rubber seals and flanged linear bearings. These include ball bushing bearings and self-aligning linear bearings.

    Applications / Industries

    LMK08UU Linear bearings can be used in a variety of different applications including Lab Equipment, Packaging Equipment, CNC Machinery, Robotic Equipment, Electronics, Appliances, Furniture, Automation Machinery, among others.

    Product Videos

    Custom Field

    Inner Diameter 8mm
    Outer Diameter 15mm
    Length 24mm
    Closure Type Rubber Sealed
    Material Chrome Steel SAE-52100
    Lubrication Light Oil
    Static Load 882 lbf
    Dynamic Load 573 lbf
    Country of Origin China
    Interchange Numbers LMK08UU, LMK08GUU, LK08UU, SMK08GUU, LHFR08, FTB08UU, NFED-08VUU
