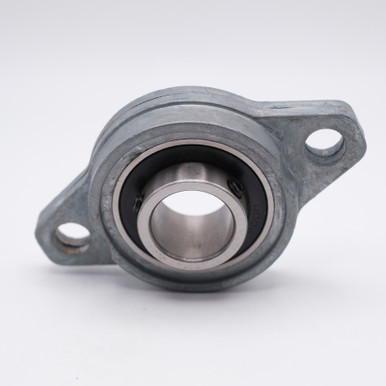

• KFL002-2RS Mini Zinc Flange Set Screw Block Bearing 15mm Bore Front View

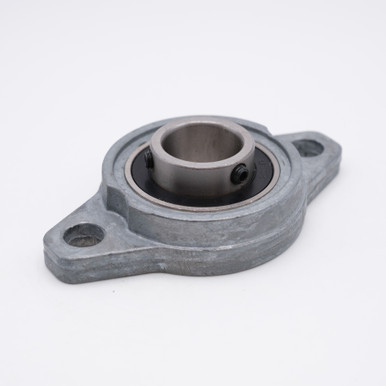

  • KFL002-2RS Mini Zinc Flange Set Screw Block Bearing 15mm Bore Side View
  • KFL002-2RS Mini Zinc Flange Set Screw Block Bearing 15mm Bore Side View

    • KFL002-2RS Mini Zinc Flange Set Screw Block Bearing Shaft Size 15mm

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    KFL002
    Minimum Purchase:
    100 units
    Inner Diameter:
    15mm
    Length:
    67mm
    Width:
    42mm
    Bolt Hole to Bolt Hole:
    53mm
    Housing Material:
    Zinc Alloy
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,259 lbf
    Dynamic Load:
    629 lbf
    Speed Limit:
    16,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    KFL002UU, KFL002U, KFL02RS, KLV02LL, KFL002, FL002

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    KFL002-2RS Mini Zinc Flange Unit

    Key Features

    KFL002-2RS bearing is a Miniature Zinc Oval Flange Housing with a Set Screw Locking Insert Ball Bearing. This Miniature Flange Unit features two set screws, located on the extended end of the inner ring of the bearing, which can be tightened onto a shaft to secure its position. Our KFL002-2RS Mini Zinc Oval Flange Units are pre-lubricated with Grease, ensuring that they are ready for immediate use upon delivery.

    Applications/Industries

    KFL002-2RS Zinc Flange Bearings are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, among others.

    Product Videos

    Custom Field

    Inner Diameter 15mm
    Length 67mm
    Width 42mm
    Bolt Hole to Bolt Hole 53mm
    Housing Material Zinc Alloy
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,259 lbf
    Dynamic Load 629 lbf
    Speed Limit 16,000 RPM
    Country of Origin China
    Interchange Numbers KFL002UU, KFL002U, KFL02RS, KLV02LL, KFL002, FL002
