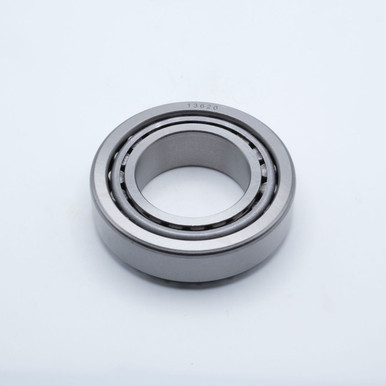

• JL26749+JL26710 - A39 Tapered Roller Bearing Set Front View

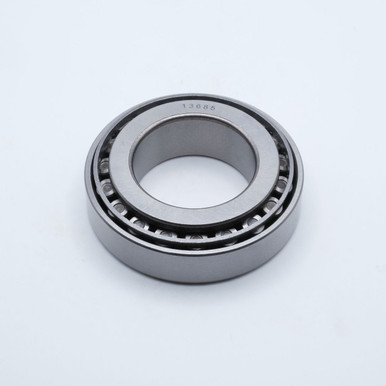

  • JL26749+JL26710 - A39 Tapered Roller Bearing Set Back View

    • JL26749+JL26710 - A39 Tapered Roller Bearing Set 32 x 53 x 14.50mm

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    JL26749/10
    Minimum Purchase:
    100 units
    Inner Diameter:
    32mm
    Outer Diameter:
    53mm
    Width:
    14.50mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    10,500 lbf
    Dynamic Load:
    9,200 lbf
    Speed Limit:
    5,400 RPM
    Country of Origin:
    China
    Interchange Numbers:
    4T-JL26749, 4T-JL26710, JL26749, L26710, S39, A39

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    JL26749/10 Tapered Roller Bearing

    Key Features

    JL26749/10 Tapered Roller Bearings consist of a two piece cup and cone assembly. The outer ring makes up the cup and the inner ring, rollers, and cage assembly make the cone. These parts of the bearing are detachable, the cone assembly is narrower in one end and the races are built with one side narrower as well to match the rollers. This design makes this bearing capable of supporting heavy loads in both axial and radial directions. Our JL26749/10 Tapered Roller Bearings are ideal for environments where high speed and heavy loads occur, and low friction is needed.

    Applications / Industries

    JL26749/10 Tapered Roller Bearings are designed for many applications such as Gearboxes, Hoisting Equipment, Rolling Mills, Mining Industry Machines, Steer axle, Drive axles, Pusher axles, Tag axles, Engines, and Propellers.

    Product Videos

    Custom Field

    Inner Diameter 32mm
    Outer Diameter 53mm
    Width 14.50mm
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 10,500 lbf
    Dynamic Load 9,200 lbf
    Speed Limit 5,400 RPM
    Country of Origin China
    Interchange Numbers 4T-JL26749, 4T-JL26710, JL26749, L26710, S39, A39
