| Bore (inner diameter) | 1-1/2" |
|---|---|
| Outer Diameter | 1-7/8" |
| Width | 1" |
| Material | Chrome Steel SAE-52100 |
|---|---|
| Lubrication | Light Oil |
| Static Load | 23,380 lbs |
|---|---|
| Dynamic Load | 11,173 lbs |
| Speed Limit | 4,300 RPM |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

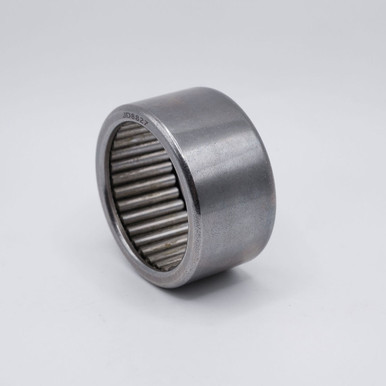

JD8827 is a Full Complement Drawn Shell Cup Needle Roller Bearing that is suitable for aftermarket applications requiring high dynamic loads. Our Inch Sized Needle Roller Bearings are made of through-hardened, high-carbon chromium steel for durability and heat tolerance, and have contoured ends to optimize the distribution of contact stress. Our Needle Roller Bearings are pre-lubricated with light oil, ensuring they are ready for immediate use upon delivery.
JD8827 Drawn Shell Cup Needle Roller Bearings are used in a range of aftermarket applications such as PTO Clutch Housing (Needle) for CaseIH Tractor 1896, 2094, 2096, 2294, 1896, 2094, 2096, & 2294, Four Wheel Drive Output Shaft (Needle) for CaseIH Tractor 3388, 3588, 3788, 3388, 3588, & 3788, Transmission Main Shaft (Front Needle) for CaseIH Tractor 3688HC, Transmission Main Shaft, 23T (Front Needle) CaseIH Tractor 4166, 4186, 4166, & 4186, Four Wheel Drive Output Shaft (Rear Needle) CaseIH Tractor 6388, 6586, 6788, 6388, 6586, & 6788, among others.
