| Bore (inner diameter) | 3/4" |
|---|---|
| Outer Diameter | 52mm |
| Width | 15mm |
| Closure Type | Rubber Sealed |
|---|---|
| Material | Chrome Steel SAE-52100 |
| Lubrication | Chevron SRI-2 Grease |
| Country of Origin | Japan |
| Static Load | 1,765 lbs |
|---|---|
| Dynamic Load | 3,147 lbs |
| Speed Limit | 13,000 RPM |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

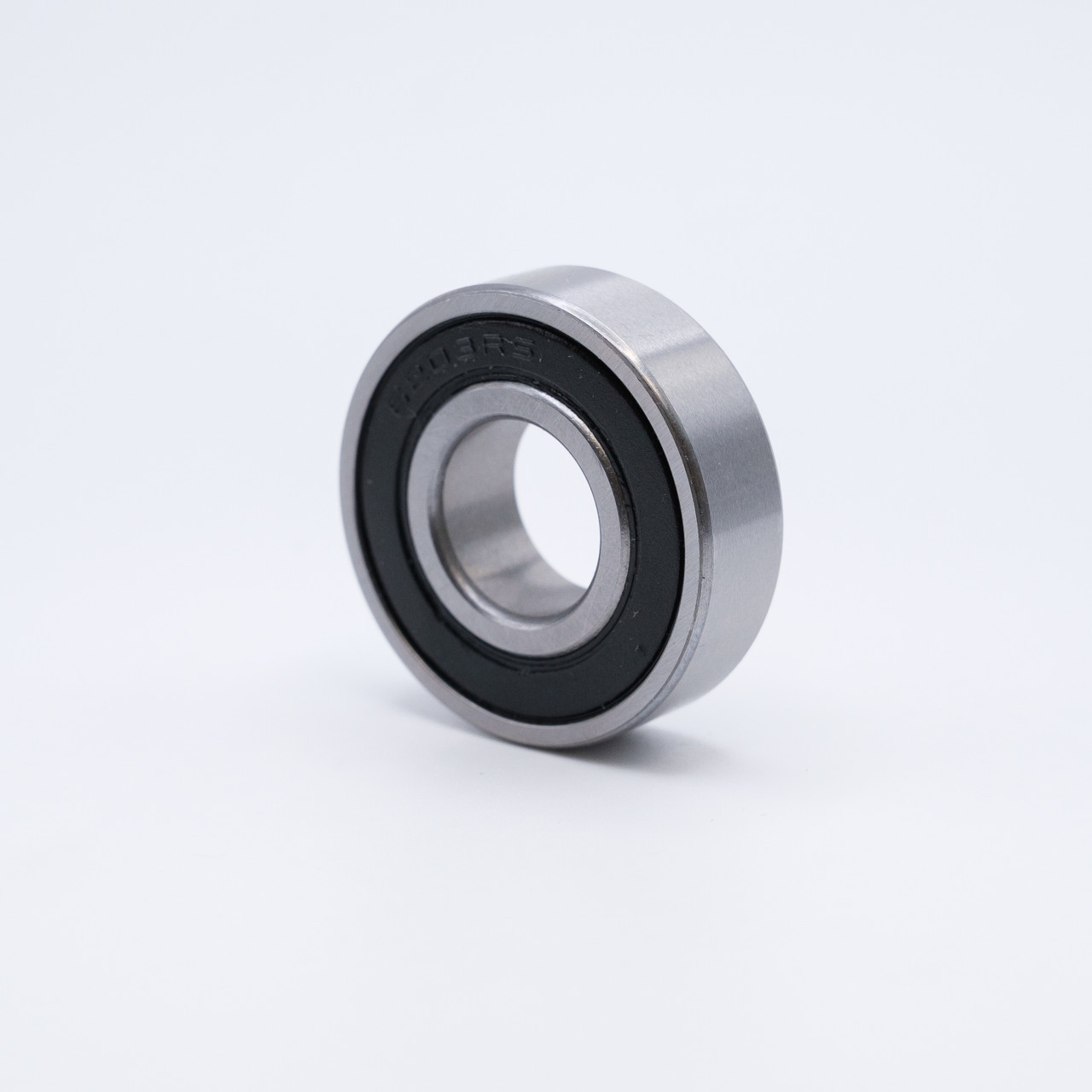

6205-VV-3/4 is a Rubber Sealed Ball Bearing with a special 3/4" Inch Bore. This bearing is made from Chrome Steel and is capable of withstand both moderate radial and axial loads while providing high performance. These bearings are designed with deep, close-contoured races to offer a perfectly balanced bearing with the capacity to carry radial, thrust or combined loads.
Sizes: 3/4" ID x 52mm OD x 15mm Width = 0.750" ID x 2.04724" OD x 0.590551" Width
Interchange: 6205-750-2RS, 6205 3/4, 3/4 6205, C6205-2RS
Applications: Electric Motors to Washing Machines, Belt Drives, Compressors, Pumps, Turbines, Printing and Textile Machines, Automotive Applications, Motorcycle Engines, Light-duty Industrial Applications, Small Spindles, Food Processing, Power Transmission, Vaccum Systems, Rolling Mills, among others.
