Drawn Shell Cup Needle Roller Bearings

HK4016 Drwan Shell Cup Needle Roller Bearing 40x47x16 TLA4016Z

SKU: TLA-4016
  • Free shipping on most orders
  • Ships from Glendale, CA
  • HK4016 Roller Bearing 40BTM4716
  • FJ4016 Bearing TLA4016
  • 40BTM4716 Bearing DB4016
  • HK-4016 bearing 40x47x16mm

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)40mm
    Outer Diameter47mm
    Width16mm

    Construction

    MaterialChrome Steel SAE-52100
    LubricationLight Oil
    Country of OriginChina

    Performance

    Static Load8,655 lbs
    Dynamic Load4,496 lbs
    Speed Limit6,600 RPM

    Interchange numbers 6

    • HK4016
    • TLA4016ZOH
    • 40BTM4716
    • FJ4016
    • DB4016
    • TLA-4016
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

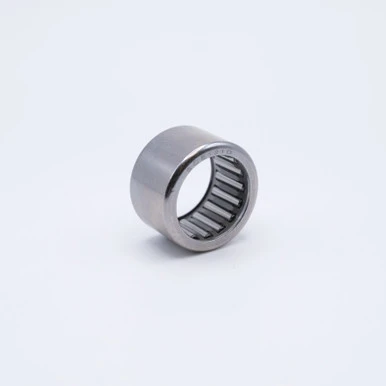

    HK4016 Drawn Shell Cup Needle Roller Bearing

    TLA4016Z Drwan Shell Cup Caged Needle Roller Bearing has a steel cage and is suitable for applications with high dynamic loads. The steel cage provides guidance and even spacing of the rollers for reduced friction, vibration, and noise when operated at high speeds. Their typical structure includes an inner race, a cage to contain the needle rollers inside an outer raceway. Our HK4016 Drawn Shell Cup Needle Roller Bearings are made of through-hardened, high-carbon chromium steel for durability and heat tolerance, and have contoured ends to optimize the distribution of contact stress.

    Sizes: ID 40mm x OD 47mm x L 16mm

    Applications: HK4016 Drawn Shell Cup Needle Roller Bearings are used in a range of applications from Two-cycle Engines to Compressors, Universal Joints, Gearbox Layshaft, First Motion Shafts and Transmissions.
