Product Description

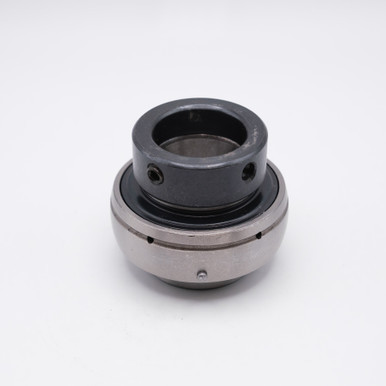

HC200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing With Locking Collar Set Screw, Sealed and Pre-Lubricated with Grease
HC200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.
Match#: NA210-30, HC210-30, UG210-30
Product Videos
Custom Field
Inner Diameter 1-7/8"
Outer Diameter 90mm
Inner Race Width 24mm
Outer Race Width 62.7mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 5,190 lbs
Dynamic Load 7,900 lbs
Speed Limit 3,400 RPM
Interchange Numbers NA210-30, HC210-30, UG210-30
