  • HC204 Insert Ball Bearing 20x47x43.7
  • HC204 Insert Ball Bearing 20x47x43.7
  • HC204 Insert Ball Bearing 20x47x43.7
  • HC204 Insert Ball Bearing 20x47x43.7
  • HC204 Insert Ball Bearing 20x47x43.7
  • HC204 Insert Ball Bearing 20x47x43.7 HC204 Insert Ball Bearing 20x47x43.7 HC204 Insert Ball Bearing 20x47x43.7 HC204 Insert Ball Bearing 20x47x43.7

    HC204 Insert Ball Bearing 20x47x43.7

    (You save )
    (No reviews yet) Write a Review
    SKU:
    HC204
    Minimum Purchase:
    100 units
    Inner Diameter:
    20mm
    Outer Diameter:
    47mm
    Inner Race Width:
    17mm
    Outer Race Width:
    43.7mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbs
    Dynamic Load:
    2,900 lbs
    Speed Limit:
    7,450 RPM
    Interchange Numbers:
    NA204, HC204, UG204

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

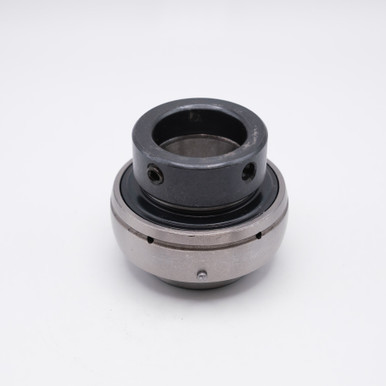

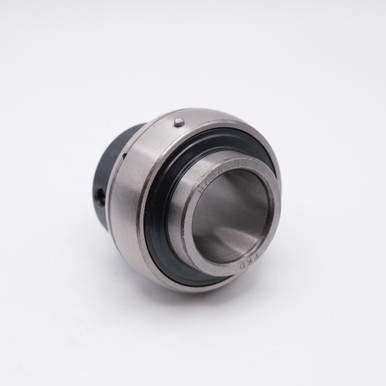

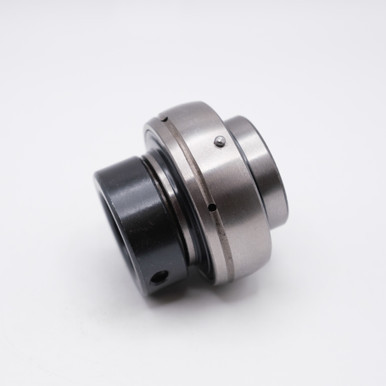

    HC200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing With Locking Collar Set Screw, Sealed and Pre-Lubricated with Grease

    HC200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.

    Match#: NA204, HC204, UG204

    Product Videos

    Custom Field

    Inner Diameter 20mm
    Outer Diameter 47mm
    Inner Race Width 17mm
    Outer Race Width 43.7mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbs
    Dynamic Load 2,900 lbs
    Speed Limit 7,450 RPM
    Interchange Numbers NA204, HC204, UG204
