    • FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32

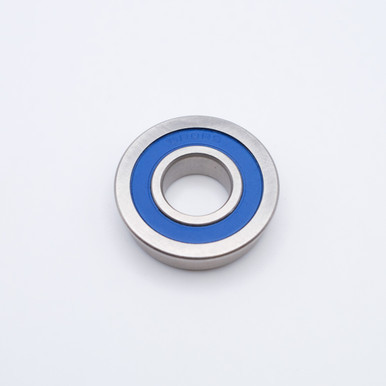

  • FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32 Front View
  • FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32 Front View
  • FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32 Side View
  • FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32 Front View FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32 Front View FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32 Side View

    FR6-2RS Miniature Ball Bearing 3/8x7/8x9/32

    (You save )
    Write a Review
    SKU:
    FR6-2RS
    Minimum Purchase:
    100 units
    Inner Diameter:
    3/8”
    Outer Diameter:
    7/8”
    Width:
    9/32”
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    FR6.2RS, RIF-1438LL, RIF1438-2RS, R6FRDDHH, FR6FF, RKS12028X, FR6ZZD, FS3PP, 2342K185, FR6RS, FR6.2RS1, FR6LLU
    Static Load:
    320 lbs
    Dynamic Load:
    749 lbs
    Grease RPM Limit:
    32,000 RPM
    Oil RPM Limit:
    38,000 RPM

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    FR6-2RS Precision Radial Miniature Flange Ball Bearing Both Sides Rubber Sealed and Pre-Lubricated with Grease

    The FR6-2RS is a miniature single row precision radial ball bearing that’s has flanged outer race and sealed with rubber on both sides and pre-lubricated with grease. It’s a ⅜-inch bore ball bearing that’s made of high-quality chrome steel that can withstand speed with same time radial and axial loads.

    Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed and Shielded bearings are lubricated with oil or grease in the bearing factory, while open bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, electric motors, CNC machinery, trucks, mining equipment, train, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

    Usage: DC Motor, Power Tool, Fish Reel, Align Helicopter, Trex700, Jewelry, Hand Piece, Hobby, RC Helicopters, RC Planes, RC Trucks, RC Cars, Beam Ball Bearing and much more

    Match #: FR6.2RS, RIF-1438LL, RIF1438-2RS, R6FRDDHH, FR6FF, RKS12028X, FR6ZZD, FS3PP, 2342K185, FR6RS, FR6.2RS1, FR6LLU

    Product Videos

    Custom Field

    Inner Diameter 3/8”
    Outer Diameter 7/8”
    Width 9/32”
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers FR6.2RS, RIF-1438LL, RIF1438-2RS, R6FRDDHH, FR6FF, RKS12028X, FR6ZZD, FS3PP, 2342K185, FR6RS, FR6.2RS1, FR6LLU
    Static Load 320 lbs
    Dynamic Load 749 lbs
    Grease RPM Limit 32,000 RPM
    Oil RPM Limit 38,000 RPM
