Oneway Clutch Bearings

CSK30PP One Way Bearing Sprag Clutch Freewheel Backstop Keyway

SKU: CSK30PP

Free shipping on most orders
Ships from Glendale, CA

CSK30PP One Way Bearing 30x62x16mm Front View

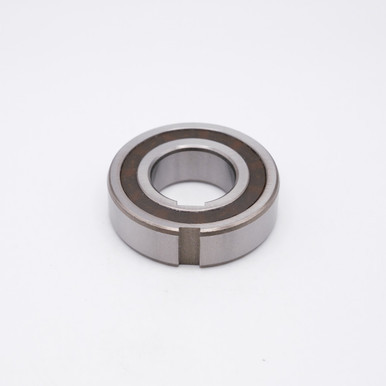

CSK30PP One Way Bearing 30x62x16mm Top View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	30mm
Outer Diameter	62mm
Width	16mm

Construction

Material	Chrome Steel SAE-52100
Lubrication	Chevron SRI-2 Grease
Country of Origin	China

Performance

Static Load	1,450 lbs
Dynamic Load	2,630 lbs
Speed Limit	4,200 RPM

Interchange numbers 8

CSK 30
CSK 30P
CSK 30PP
ZZ6206
KK30
FK30
BB30
OW6206

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

CSK30PP One Way Clutch Bearing

Key Features

CSK30PP Bearing is a Precision One Way Freewheel Overrunning Clutch with both an internal keyway and external keyway, both sides are rubber sealed and pre-lubricated with Grease to be ready for use upon delivery. Freewheel bearings are characterized by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an external key way to the housing and onto the shaft by an internal keyway.

Applications / Industries

CSK30PP Ball Bearings are used in a range of applications from Agricultural Machinery to Industrial Washing Machines, Clay Pigeon (Trap) Throwers, Conveying Equipment, Electric Motors, CNC Machinery, Mining Equipment, Robotics, Dental Equipment, Elevators, Rolling Mills, Ship Rudder Shafts, and Aggregate Crushers, among others.
