Oneway Clutch Bearings

CSK15PP One Way Clutch Bearing 15x35x11mm

SKU: CSK15PP
  • Free shipping on most orders
  • Ships from Glendale, CA
  • CSK15PP One Way Clutch Bearing 15x35x11mm Front View

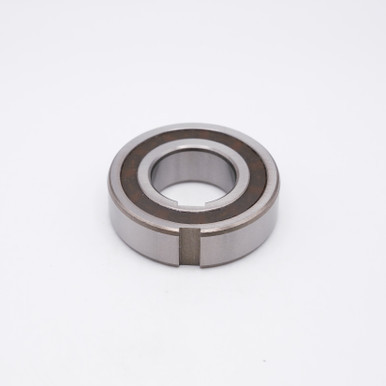

  • CSK15PP One Way Clutch Bearing 15x35x11mm Flat View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)15mm
    Outer Diameter35mm
    Width11mm

    Construction

    MaterialChrome Steel SAE-52100
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load770 lbs
    Dynamic Load1,665 lbs
    Speed Limit8,400 RPM

    Interchange numbers 3

    • CSK15PP
    • ZZ6202
    • OW6202
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    CSK15PP is a Precision One Way Freewheel Overrunning Clutch with both an internal and external keyway and is pre-lubricated with Grease, allowing this bearing to be ready for use upon delivery. Freewheel bearings are characterized by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. The torque is transmitted on the inner and outer race by an external key way to the housing and onto the shaft by an internal keyway. These bearings are made from high quality chrome steel and are low maintanence.

    Sizes: ID 15mm x OD 35mm x W 11mm = ID 0.591" x OD 1.378" x W 0.433"

    Interchange: CSK15PP, ZZ6202, OW6202

    Applications: This bearing is used in a variety of applications ranging Agricultural Machinery to Industrial Washing Machines,  Conveying Equipment, Electric Motors, CNC Machinery, Trucks, Mining Equipment, Train, Robotics, Dental Equipment, Elevators, Rolling Mills, Ship Rudder Shafts, and Aggregate Crushers, among others.
