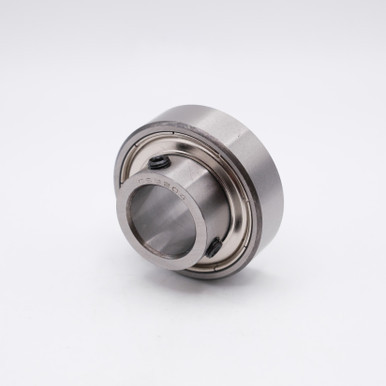

  • CSB205-14 Insert Ball Bearing 7/8x52x27
  • CSB205-14 Insert Ball Bearing 7/8x52x27 Side View
  • CSB205-14 Insert Ball Bearing 7/8x52x27 Back View
  • CSB205-14 Insert Ball Bearing 7/8x52x27 Flat View
  • CSB205-14 Insert Ball Bearing 7/8x52x27 Front View
  • CSB205-14 Insert Ball Bearing 7/8x52x27 Side View CSB205-14 Insert Ball Bearing 7/8x52x27 Back View CSB205-14 Insert Ball Bearing 7/8x52x27 Flat View CSB205-14 Insert Ball Bearing 7/8x52x27 Front View

    CSB205-14 Insert Ball Bearing 7/8x52x27

    (You save )
    (No reviews yet) Write a Review
    SKU:
    CSB205-14
    Minimum Purchase:
    50 units
    Inner Diameter:
    7/8"
    Outer Diameter:
    52mm
    Inner Race Width:
    15mm
    Outer Race Width:
    27mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,750 lbs
    Dynamic Load:
    3,140 lbs
    Speed Limit:
    6,250 RPM
    Interchange Numbers:
    FHSR205-14, BR205-14, SLS-114, CSB205-14N, SL-14

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    CSB200 Series Bearing is Precision Insert Ball Bearing Cylindrical Outer with Set Screw and Pre-Lubricated with Grease

    CSB200 Series Insert Bearing has two set screws on the inner race for securing to the shaft. It has a cylindrical outer race that is pre-lubed and engineered for light duty use. This type bearing is self-aligning for the standard load capacity. The standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite to the collar to make it interchangeable to all manufacturers which makes it more efficient.

    Match #: FHSR205-14, BR205-14, SLS-114, CSB205-14N, SL-14

    Product Videos

    Custom Field

    Inner Diameter 7/8"
    Outer Diameter 52mm
    Inner Race Width 15mm
    Outer Race Width 27mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,750 lbs
    Dynamic Load 3,140 lbs
    Speed Limit 6,250 RPM
    Interchange Numbers FHSR205-14, BR205-14, SLS-114, CSB205-14N, SL-14
