  • Home
  • Insert Bearings
  • CSB Series

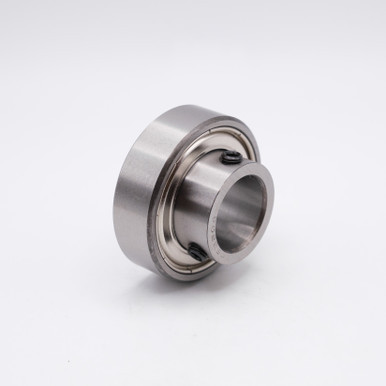

  • CSB204 Insert Ball Bearing 20x47x25
  • CSB204 Insert Ball Bearing 20x47x25 Side View
  • CSB204 Insert Ball Bearing 20x47x25 Back View
  • CSB204 Insert Ball Bearing 20x47x25 Flat View
  • CSB204 Insert Ball Bearing 20x47x25 Front View
  • CSB204 Insert Ball Bearing 20x47x25 Side View CSB204 Insert Ball Bearing 20x47x25 Back View CSB204 Insert Ball Bearing 20x47x25 Flat View CSB204 Insert Ball Bearing 20x47x25 Front View

    CSB204 Insert Ball Bearing 20x47x25

    (You save )
    (No reviews yet) Write a Review
    SKU:
    CSB204
    Minimum Purchase:
    50 units
    Inner Diameter:
    20mm
    Outer Diameter:
    47mm
    Inner Race Width:
    14mm
    Outer Race Width:
    25mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbs
    Dynamic Load:
    2,900 lbs
    Speed Limit:
    7,450 RPM
    Interchange Numbers:
    FHSR204, BR204

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    CSB200 Series Bearing is Precision Insert Ball Bearing Cylindrical Outer with Set Screw and Pre-Lubricated with Grease

    CSB200 Series Insert Bearing has two set screws on the inner race for securing to the shaft. It has a cylindrical outer race that is pre-lubed and engineered for light duty use. This type bearing is self-aligning for the standard load capacity. The standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite to the collar to make it interchangeable to all manufacturers which makes it more efficient.

    Match #: FHSR204, BR204

    Product Videos

    Custom Field

    Inner Diameter 20mm
    Outer Diameter 47mm
    Inner Race Width 14mm
    Outer Race Width 25mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbs
    Dynamic Load 2,900 lbs
    Speed Limit 7,450 RPM
    Interchange Numbers FHSR204, BR204
