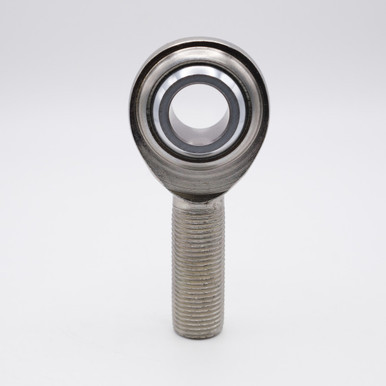

• CML3T Inch Sized Rod End 3/16" Bore Front View
  • CML3T Inch Sized Rod End 3/16" Bore Right Angled View

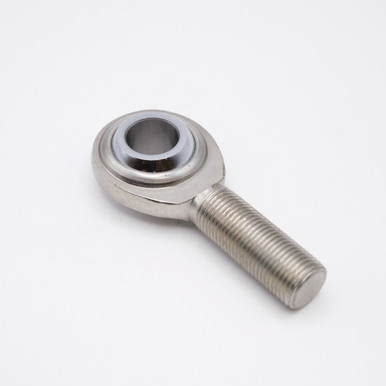

  • CML3T Inch Sized Rod End 3/16" Bore Left Angled View
  • CML3T Inch Sized Rod End 3/16" Bore Top View

    • CML3T Inch Sized Rod End 3/16" Bore Left Hand

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    CML3T
    Minimum Purchase:
    100 units
    Inner Diameter:
    3/16"
    Outer Diameter:
    5/8"
    Overall Height:
    1-9/16"
    Base to Center:
    1-1/4"
    Thread Size:
    10-32
    Thread Direction:
    Left Hand
    Ball Material:
    Chrome Steel SAE-52100
    Housing Material:
    Zinc Plated with PTFE Liner
    Lubrication:
    None
    Static Load:
    989 lbs
    Country of Origin:
    China
    Interchange Numbers:
    CML3T, CML-3T
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    CML3T is an Inch Sized Rod-End with a PTFE Liner and a Left Hand Thread. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This bearing features a PTFE Liner with allows the bearing to function without the use of lubricant.

    Sizes: 3/16" Bore x 3/4" Rod x 10-32 Thread Size

    Applications: Inch Sized Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Conveyor Systems, Trucks, Automation Control Components, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.

    Product Videos

    Custom Field

    Inner Diameter 3/16"
    Outer Diameter 5/8"
    Overall Height 1-9/16"
    Base to Center 1-1/4"
    Thread Size 10-32
    Thread Direction Left Hand
    Ball Material Chrome Steel SAE-52100
    Housing Material Zinc Plated with PTFE Liner
    Lubrication None
    Static Load 989 lbs
    Country of Origin China
    Interchange Numbers CML3T, CML-3T
