Rod End Bearings

CM8TY Inch Sized Male Studded Rod End Bearing Right Hand

SKU: CM8TY
  • Free shipping on most orders
  • Ships from Glendale, CA
  • CM8TY Inch Sized Male Studded Rod End Bearing Side View

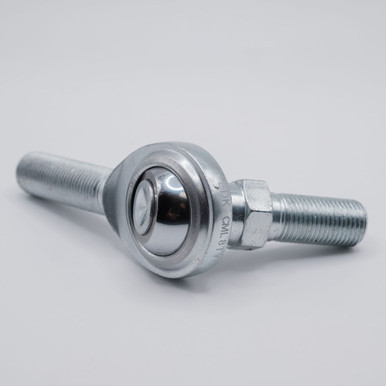

  • CM8TY Inch Sized Male Studded Rod End Bearing Top View

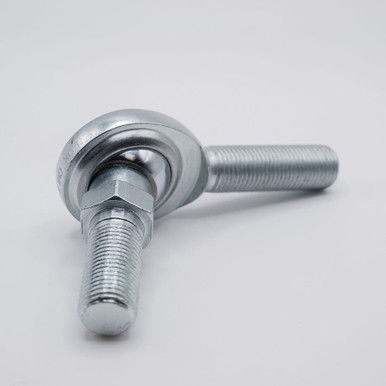

  • CM8TY Inch Sized Male Studded Rod End Bearing Front View

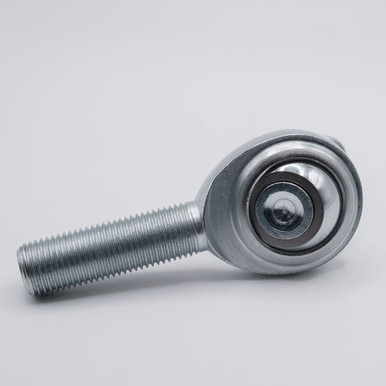

  • CM8TY Inch Sized Male Studded Rod End Bearing Back View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Outer Diameter1-5/16"
    Overall Height3-3/32"
    Base to center height2-7/16"
    Thread Size1/2-20
    Thread Length1-1/2"
    Thread DirectionRight Hand
    Stud Thread Size1/2-20
    Stud Thread Length1"

    Construction

    Housing MaterialZinc Plated with PTFE Liner
    Ball MaterialChrome Steel SAE-52100
    Stud MaterialZinc Plated
    LubricationNone
    Country of OriginChina

    Performance

    Static Load5,328 lbs

    Interchange numbers 3

    • CM8TY
    • CM-8TY
    • 60745K661
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    CM8TY is an Inch Sized Male Rod End Bearing manufactured with a Stud, a Right Hand Thread and a PTFE Lining. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This bearings consists of a spherical swivel with a cylindrical bore pressed into a male housing with a right hand thread and a stud insert into the bore. CM8TY is made from chrome steel and features a PTFE lined race which allows the ball to slide without the use of lubrication or the need to relubricate the bearing.

    Sizes: 1-5/16" OD x 1-1/2" Thread Length x 1/2-20 Thread Size

    Applications: Rod End Bearings are used in a variety of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Assembly Line Equipment, Conveyor Systems, Construction Equipment, Industrial Machines, among others.
