Rod End Bearings

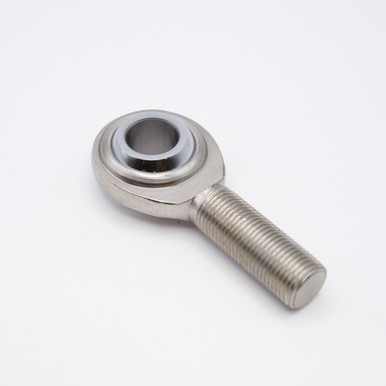

CM10T Inch Sized Rod End 5/8" Bore Right Hand
- Free shipping on most orders
- Ships from Glendale, CA
Specifications
Dimensions
| Bore (inner diameter) | 5/8" |
|---|---|
| Outer Diameter | 1-1/2" |
| Overall Height | 3-3/8" |
| Base to center height | 2-5/8" |
| Thread Size | 5/8-18 |
| Thread Direction | Right Hand |
Construction
| Housing Material | Zinc Plated with PTFE Liner |
|---|---|
| Ball Material | Chrome Steel SAE-52100 |
| Lubrication | None |
| Country of Origin | China |
Performance
| Static Load | 5,778 lbs |
|---|
Interchange numbers 3
- CM10T
- CM-10T
- 2458K17
Ordering & returns
Lead time
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Before you order
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping and returns
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.
Description
CM10T is an Inch Sized Rod-End with a PTFE Liner and a Right Hand Thread. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This bearing features a PTFE Liner with allows the bearing to function without the use of lubricant.
Sizes: 5/8" Bore x 1-5/8" Rod x 5/8-18 Thread Size
Applications: Inch Sized Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Conveyor Systems, Pnuematics Machinery, Automation Control Components, Lawn Tractors, Boats, Industrial Machines, among others.
