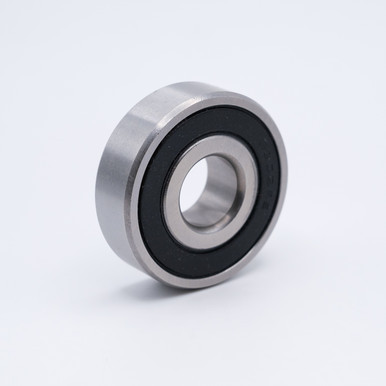

    6305-2RSC3 Ball Bearing 25x62x17

    (You save )
    (No reviews yet) Write a Review
    SKU:
    6305-2RSC3
    Minimum Purchase:
    100 units
    Inner Diameter:
    25mm
    Outer Diameter:
    62mm
    Width:
    17mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    6305RSC3, 6305LLUC3, 6305LLBC3, 6305DDUCM, 6305VVC3, 6305.2RSJ1/C3, 6305EE/C3, 6305.2RUC3, 305PPC3, 305KSZZA3, 6305-2NSLC3, 99305, 6L054, 5972K57, 6661K126, 6305-2NSECM
    Static Load:
    2,460 lbs
    Dynamic Load:
    4,750 lbs
    Grease RPM Limit:
    11,000 RPM
    Oil RPM Limit:
    13,000 RPM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    6305-2RSC3 This single-row radial bearing has C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion 6305DDUC3 it has two press metal seals on outer ring to protect bearing from any alien objects and corrosion of internal components and they are non-contacts toward inner ring, it also has metal retainer, the retainer also referred to as the cage or separator, is used to separate and position the balls at equal intervals around the bearing raceways. The 6305-2RSC3 is precision ABEC1 or P0 international standard accuracy, 6305.2RSR.C3 is capable of carrying axial load and rotation at the same time as light duty ball bearing

    6305-2RSC3 Radial Ball Bearing have different features honed raceways and deep which results in the fine craftsmanship of a perfectly balanced bearing. The 6305-2RSC3 is precision ABEC1 or P0 international standard accuracy, 6305DDUC3 is capable of carrying axial load and rotation at the same time as light duty ball bearing. This specific 6305.2RSRC3 bearing has a high quality bearing used in axial fans, motors, drive axles, clutch, idler wheels, HVAC, snow mobiles and many other industrial applications. Functionally it is similar to the 6200 Series Radial Ball Bearing.

    Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed and Shielded bearings are lubricated with oil or grease in the bearing factory, while open bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, electric motors, CNC machinery, trucks, mining equipment, train, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

    Match #: 6305RSC3, 6305LLUC3, 6305LLBC3, 6305DDUCM, 6305VVC3, 6305.2RSJ1/C3, 6305EE/C3, 6305.2RUC3, 305PPC3, 305KSZZA3, 6305-2NSLC3, 99305, 6L054, 5972K57, 6661K126, 6305-2NSECM

    Product Videos

    Custom Field

    Inner Diameter 25mm
    Outer Diameter 62mm
    Width 17mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers 6305RSC3, 6305LLUC3, 6305LLBC3, 6305DDUCM, 6305VVC3, 6305.2RSJ1/C3, 6305EE/C3, 6305.2RUC3, 305PPC3, 305KSZZA3, 6305-2NSLC3, 99305, 6L054, 5972K57, 6661K126, 6305-2NSECM
    Static Load 2,460 lbs
    Dynamic Load 4,750 lbs
    Grease RPM Limit 11,000 RPM
    Oil RPM Limit 13,000 RPM
