• 608-2RS-16 Sealed Ball Bearing 5/16" bore Right Angled View

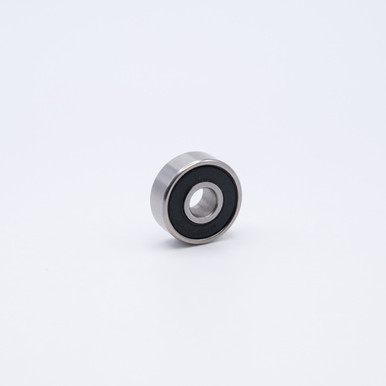

  • 608-2RS-16 Sealed Ball Bearing 5/16" bore Left Angled View
  • 608-2RS-16 Sealed Ball Bearing 5/16" bore Flat View

    • 608-2RS-16 Sealed Ball Bearing 5/16" bore

    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    608-2RS-16
    Inner Diameter:
    5/16"
    Outer Diameter:
    22mm
    Width:
    7mm
    Closure Type:
    Rubber Sealed
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    311 lbs
    Dynamic Load:
    741 lbs
    Speed Limit:
    34,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    608-2RS-5/16, 608-2RS16, 608-RS-16, MR608-2RS-16
    Request a Quote for 0+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    608-2RS-16 Miniature Ball Bearing

    Key Features

    608-2RS-16 is an ABEC1 Precision Radial Miniature Ball Bearing manufactured with a special 5/16" inch bore, Rubber Seals on both sides and is pre-lubricated with grease allowing it to be ready for use upon delivery. Our 600 Series Bearings have a larger OD which can assist in high speed applications as well as facilitate larger loads.

    Applications / Industries

    608-2RS-16 Miniature Ball Bearings are used in a range of applications from Electric Motors to Robotic Systems, Power Tools, Wheel Bearing, High Speed Motors, Medical Equipment, Skating, Rollerblades, Skateboards, Fidget Spinner, Jewelry, RC Helicopters, RC Planes, RC Trucks, RC Cars, robotics, Dental equipment, among others.

    Product Videos

    Custom Field

    Inner Diameter 5/16"
    Outer Diameter 22mm
    Width 7mm
    Closure Type Rubber Sealed
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 311 lbs
    Dynamic Load 741 lbs
    Speed Limit 34,000 RPM
    Country of Origin China
    Interchange Numbers 608-2RS-5/16, 608-2RS16, 608-RS-16, MR608-2RS-16
