Double Row Ball Bearings

5212-2RSNR Double Row Ball Bearing 60x110x36.5mm Sealed Snap Ring

SKU: 5212-2RSNR

Free shipping on most orders
Ships from Glendale, CA

5212-2RSNR Double Row Ball Bearing 60x110x36.5 Front View

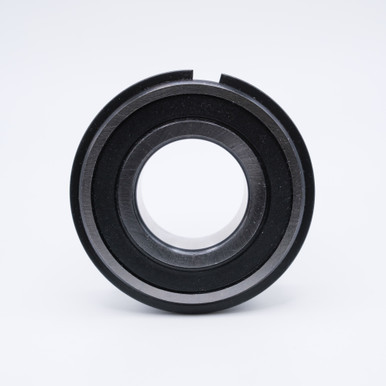

5212-2RSNR Double Row Ball Bearing 60x110x36.5 Back View

5212-2RSNR Double Row Ball Bearing 60x110x36.5 Top View

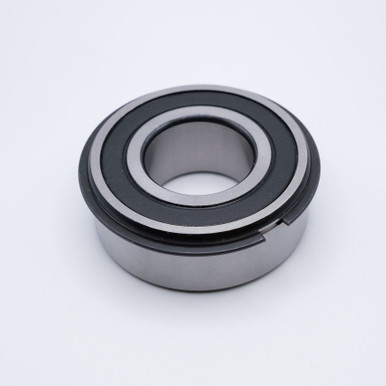

5212-2RSNR Double Row Ball Bearing 60x110x36.5 Bottom View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	60mm
Outer Diameter	110mm
Width	36.5mm

Construction

Closure Type	Rubber Sealed
Material	Chrome Steel SAE-52100
Lubrication	Chevron SRI-2 Grease
Country of Origin	China

Performance

Static Load	13,100 lbs
Dynamic Load	16,100 lbs
Speed Limit	3,400 RPM

Interchange numbers 3

5212 2RSNR
4995212 NDH
5212CZZG

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

5212-2RSNR Double Row Ball Bearing

Key Features

5212-2RSNR Double Row Ball Bearing manufactured with a Snap Ring, Rubber Seals on both sides and is pre-lubricated with Grease allowing it to be ready for use upon delivery. 5212-2RSNR is a Chrome Steel 5200 Series Light Duty Double Row Ball Bearing that is ideal for high speed applications and moderate loads. 5212-2RSNR features a Snap Ring which allows the bearing to be securely positioned in an application while preventing the migration of components during operation. Our 5200 Series Metric Double Row Ball Bearings are available either open, metal shielded, or with rubber sealed closures and come pre-lubricated with either grease or light oil.

Applications / Industries

5212-2RSNR is used in a variety of Commercial and Industrial Applications including Pumps and Compressors, Automotive Drives, Gearboxes, Wind Turbines, Printing Machines, Agricultural Machinery, Conveying Equipment, Electric Motors, CNC Machinery, Trucks, Mining Equipment, Robotics, Dental Equipment, Blowers, High Speed Vacuum Pumps, Super Chargers, Motorcycle Transmissions, among others.
