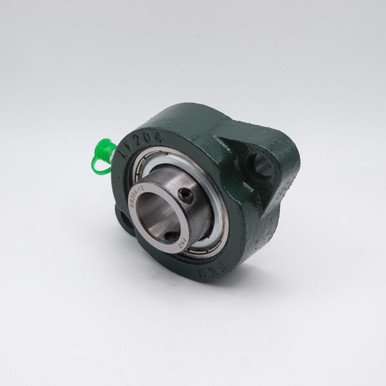

• SBLF202-10 2-Bolt Flange Bearing Unit 5/8" Bore
  • SBLF202-10G 2-Bolt Flange Bearing Unit 5/8" Bore

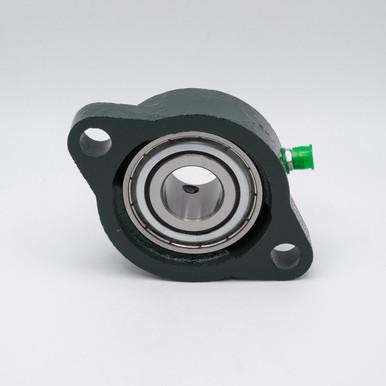

  • SBLF202 10G 2-Bolt Flange Bearing Unit 5/8" Bore
  • SBLF202-10 2-Bolt Flange Bearing Unit 5/8" Bore Front View
  • SBLF202-10 2-Bolt Flange Bearing Unit 5/8" Bore Back View
  • SBLF202-10 2-Bolt Flange Bearing Unit 5/8" Bore Side View

    • 5/8" Bore SBLF202-10 2 Bolt Flange Bearing

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SBLF202-10
    Minimum Purchase:
    100 units
    Inner Diameter:
    5/8"
    Overall Length:
    3-3/16"
    Overall Height:
    2-13/64"
    Bolt Hole to Bolt Hole:
    2-1/2"
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,075 lbf
    Dynamic Load:
    2,147 lbf
    Speed Limit:
    8,800 RPM
    Country of Origin:
    China
    Interchange Numbers:
    SBLF202-10G, FHSLF202-10G Peer, BLF202-10GKP8G5 FYH, SBLF20210G, SBLF202 10G SKF, ASFD202-010 NTN, BLFL2-10 AMI

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SBLF202-10 2-Bolt Flange Bearing Unit

    Key Features

    SBLF202-10 is an SBLF200 Series 2-Bolt Flange Bearing Unit featuring a shorter bot hole distance as well as two Set Screws on the extended end of the insert, which can be tightened when positioned onto a shaft. This SBLF202-10 Bearing Unit has a combination of a chrome steel SB200 insert set screw ball bearing, and an oval cast iron 2-Bolt flange housing with grease feeding access allowing for re-lubrication of the insert. Our flange bearing units are pre-lubricated with grease ensuring they are ready for use upon arrival.

    Applications / Industries

    SBLF202-10 2-Bolt Flange Bearing Units are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Automotive, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, Farm Machinery, Conveyor, Feed Mill, among other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 5/8"
    Overall Length 3-3/16"
    Overall Height 2-13/64"
    Bolt Hole to Bolt Hole 2-1/2"
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,075 lbf
    Dynamic Load 2,147 lbf
    Speed Limit 8,800 RPM
    Country of Origin China
    Interchange Numbers SBLF202-10G, FHSLF202-10G Peer, BLF202-10GKP8G5 FYH, SBLF20210G, SBLF202 10G SKF, ASFD202-010 NTN, BLFL2-10 AMI
