• 30220 Tapered Roller Bearing 100x180x37mm Front View

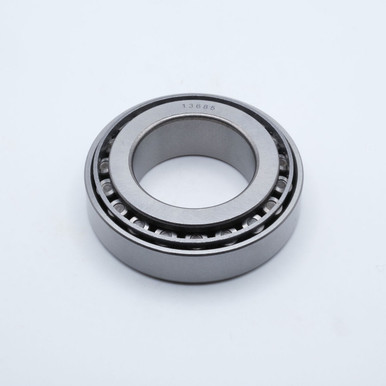

  • 30220 Tapered Roller Bearing 100x180x37mm Back View

    • 30220 Tapered Roller Bearing 100x180x37mm

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    30220
    Minimum Purchase:
    100 units
    Inner Diameter:
    100mm
    Outer Diameter:
    190mm
    Width:
    37mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Light Oil
    Static Load:
    71,939 lbf
    Dynamic Load:
    68,342 lbf
    Speed Limit:
    3,600 RPM
    Country of Origin:
    China
    Interchange Numbers:
    Y302220M/X30220M, 30220/J2, HR30220J, 4T-30220, K30220, 30220A, 30220-A, 30220X

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    30220 Tapered Roller Bearing

    Key Features

    The 30220 bearing is a Precision Tapered Roller Bearing in a Set of Cone and Cup. This is the most basic and most widely used type of Tapered Roller Bearing. It consists of two main separable parts: the cone assembly (inner ring) and the cup (outer ring). It is typically mounted in opposing pairs on a Shaft Wheel Bearing Assembly. Our 30200-Series Tapered Roller Bearings provide enhanced performance in demanding applications and are pre-lubricated with light oil to ensure they are ready to use upon arrival.

    Applications / Industries

    30220 Tapered Roller Bearings are used in a range of applications from Agricultural Machinery to Conveying Equipment, Electric Motors, Trucks, Mining Equipment, Robotics, Dental Equipment, Gear Drives, Elevators, Rolling Mills, Ship Rudder Shafts, Aggregate Crushers, among others.

    Product Videos

    Custom Field

    Inner Diameter 100mm
    Outer Diameter 190mm
    Width 37mm
    Material Chrome Steel SAE-52100
    Lubrication Light Oil
    Static Load 71,939 lbf
    Dynamic Load 68,342 lbf
    Speed Limit 3,600 RPM
    Country of Origin China
    Interchange Numbers Y302220M/X30220M, 30220/J2, HR30220J, 4T-30220, K30220, 30220A, 30220-A, 30220X
