• 30204 Tapered Roller Bearing 20x47x15.25 Front View

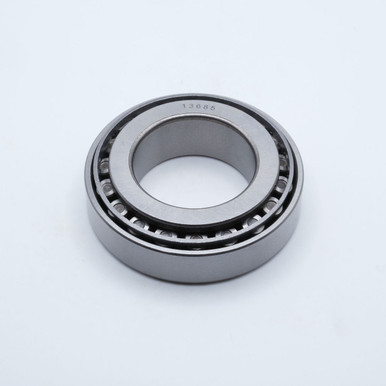

  • 30204 Tapered Roller Bearing 20x47x15.25 Back View

    • 30204 Tapered Roller Bearing 20x47x15.25 HR30204

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    30204
    Minimum Purchase:
    100 units
    Inner Diameter:
    20mm
    Outer Diameter:
    47mm
    Width:
    15.25mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Light Oil
    Static Load:
    6,300 lbs
    Dynamic Load:
    6,180 lbs
    Speed Limit:
    8,400 RPM
    Country of Origin:
    China
    Interchange Numbers:
    30204X, 4T-30204, 30204J, X30204, Y30204, HR30204J, 30204AJ, 30204-A, K30204
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    30204 Tapered Roller Bearing

    Key Features

    The 30204 bearing is a Precision Tapered Roller Bearing in a Set of Cone and Cup. This is the most basic and most widely used type of Tapered Roller Bearing. It consists of two main separable parts: the cone assembly (inner ring) and the cup (outer ring). It is typically mounted in opposing pairs on a Shaft Wheel Bearing Assembly. Our 30200-Series Tapered Roller Bearings provide enhanced performance in demanding applications and are pre-lubricated with light oil to ensure they are ready to use upon arrival.

    Applications / Industries

    30204 Tapered Roller Bearings are used in a range of applications from Agricultural Machinery to Conveying Equipment, Electric Motors, Trucks, Mining Equipment, Robotics, Dental Equipment, Gear Drives, Elevators, Rolling Mills, Ship Rudder Shafts, Aggregate Crushers, among others.

    Product Videos

    Custom Field

    Inner Diameter 20mm
    Outer Diameter 47mm
    Width 15.25mm
    Material Chrome Steel SAE-52100
    Lubrication Light Oil
    Static Load 6,300 lbs
    Dynamic Load 6,180 lbs
    Speed Limit 8,400 RPM
    Country of Origin China
    Interchange Numbers 30204X, 4T-30204, 30204J, X30204, Y30204, HR30204J, 30204AJ, 30204-A, K30204
