• 30/5B-2RS Double Row Ball Bearing 5x14x7mm Right Angled View

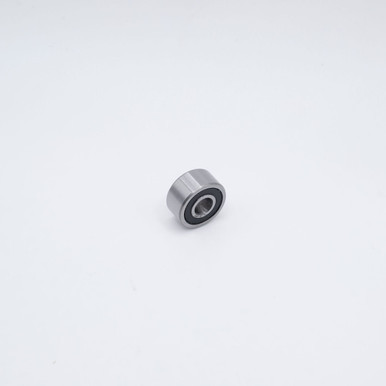

  • 30/5B-2RS Double Row Ball Bearing 5x14x7mm Left Angled View

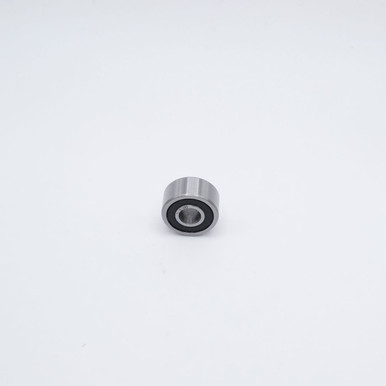

  • 30/5B-2RS Double Row Ball Bearing 5x14x7mm Front View
  • 30/5B-2RS Double Row Ball Bearing 5x14x7mm Flat View

    • 30/5B-2RS Double Row Ball Bearing 30-5-2RS

    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    30-5-2RS
    Inner Diameter:
    5mm
    Outer Diameter:
    14mm
    Width:
    7mm
    Closure Type:
    Rubber Sealed
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    354 lbs
    Dynamic Load:
    185 lbs
    Speed Limit:
    40,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    30/5-B-2RS-TVH, 30-5-B-2RS, 30/5B.2RSR.TVH, 30-5RS
    Request a Quote for 0+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    30-5-2RS bearing is Precision Angular Contact Double Row Miniature Ball Bearing with Resin Ball Cages and
    pre-lubricated with bearing grease to allow them to be ready to use upon arrival.

    Sizes: ID 5mm x OD 14mm x W 7mm = ID 0.19685" x OD 0.55118" x W 0.27559" Inches

    Interchange: 30/5-B-2RS-TVH, 30-5-B-2RS, 30/5B.2RSR.TVH, 30-5RS, 30-5-B-2RS



    Product Videos

    Custom Field

    Inner Diameter 5mm
    Outer Diameter 14mm
    Width 7mm
    Closure Type Rubber Sealed
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 354 lbs
    Dynamic Load 185 lbs
    Speed Limit 40,000 RPM
    Country of Origin China
    Interchange Numbers 30/5-B-2RS-TVH, 30-5-B-2RS, 30/5B.2RSR.TVH, 30-5RS
