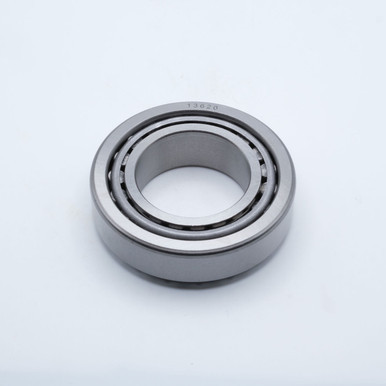

• 25580+25521 Tapered Roller Bearing 1-3/4x3-17/64x15/16 Front View

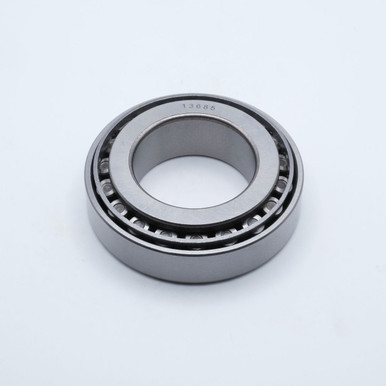

  • 25580+25521 Tapered Roller Bearing 1-3/4x3-17/64x15/16 Back View

    • 25580+25521 Tapered Roller Bearing 1-3/4x3-17/64x15/16

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    25580/21
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-3/4"
    Outer Diameter:
    3-17/64"
    Width:
    15/16"
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Light Oil
    Static Load:
    22,000 lbf
    Dynamic Load:
    17,100 lbf
    Speed Limit:
    4,500 RPM
    Country of Origin:
    China
    Interchange Numbers:
    25580/21, 25521, 4T-25521, 4T-25580

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    25580+25521 Tapered Roller Bearing

    Key Features

    25580/25521 Tapered Roller Bearings consist of a two piece cup and cone assembly. The outer ring of this bearing makes up the cup and the inner ring, rollers, and cage assembly make the cone. These parts of the bearing are detachable, the cone assembly is narrower in one end and the races are built with one side narrower as well to match the rollers. This design makes this bearing capable of supporting heavy loads in both axial and radial directions. Our 25580/25521 Tapered Roller Bearings are ideal for environments where high speed and heavy loads occur, and low friction is needed.

    Applications / Industries

    25580/25521 Tapered Roller Bearings are designed for many applications such as Gearboxes, Hoisting Equipment, Rolling Mills, Mining Industry Machines, Steer axle, Drive axles, Pusher axles, Tag axles, Engines, and Propellers.

    Product Videos

    Custom Field

    Inner Diameter 1-3/4"
    Outer Diameter 3-17/64"
    Width 15/16"
    Material Chrome Steel SAE-52100
    Lubrication Light Oil
    Static Load 22,000 lbf
    Dynamic Load 17,100 lbf
    Speed Limit 4,500 RPM
    Country of Origin China
    Interchange Numbers 25580/21, 25521, 4T-25521, 4T-25580
