• 203KRR2 Agricultural Ball Bearing 16.25x40x12mm Right Side View
  • 203KRR2 Agricultural Ball Bearing 16.25x40x12mm Left Side View
  • 203KRR2 Agricultural Ball Bearing 16.25x40x12mm Top View

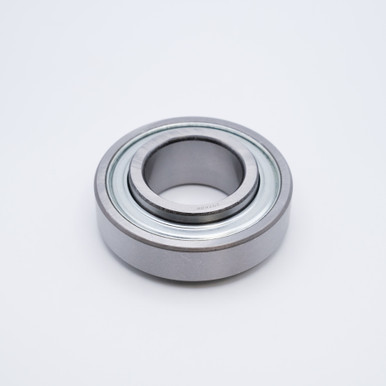

  • 203KRR2 Agricultural Ball Bearing 16.25x40x12mm Flat View

    • 203KRR2 Agricultural Ball Bearing 16.25x40x12mm Sealed JD9214

    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    203KRR2
    Inner Diameter:
    16.25mm
    Outer Diameter:
    40mm
    Width:
    12mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,070 lbs
    Dynamic Load:
    2,370 lbs
    Speed Limit:
    10,500 RPM
    Country of Origin:
    China
    Interchange Numbers:
    203RRAR10, 203KRR2, 126115, F16246, 149261C91, 222279, 520117, 666624R91, AN142670, AN281357, JD9214, AA82881, 822-095C, 20-50-006, 66553, 2SH862

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    203KRR2 Agricultural Ball Bearing

    Key Features

    203KRR2 is an Agricultural Ball Bearing manufactured to have both sides metal shielded to prevent any dust & debris from entering the inner workings of the bearing and comes with a thick Outer Ring. This 203KRR2 bearing belongs to our collection of Single Row Radial Ball Bearings and features an extended inner ring on both sides. 203KRR2 is pre-lubricated with grease to allow it to be ready for use upon delivery.

    Applications / Industries

    203KRR2 Ball bearings are used in a range of agricultural applications from Planters to Gauge Wheels, Rotary Hoe, Cultivators, Tillers, Combines, Balers, Conveyor Systems, Grain Augers, Garden Tractors, Industrial Fans, Pumps, Power Transmission Equipment, among others.

    Product Videos

    Custom Field

    Inner Diameter 16.25mm
    Outer Diameter 40mm
    Width 12mm
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,070 lbs
    Dynamic Load 2,370 lbs
    Speed Limit 10,500 RPM
    Country of Origin China
    Interchange Numbers 203RRAR10, 203KRR2, 126115, F16246, 149261C91, 222279, 520117, 666624R91, AN142670, AN281357, JD9214, AA82881, 822-095C, 20-50-006, 66553, 2SH862
