Agricultural Bearings

1" bore Disc Harrow Bearing W208PPB6 Square Bore Ball Bearing

SKU: W208PPB6
  • Free shipping on most orders
  • Ships from Glendale, CA

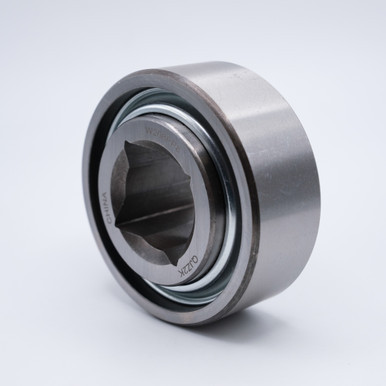

  • Disc Harrow Bearing Ball Bearing 1" bore Side View

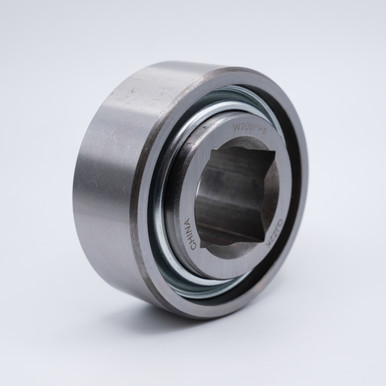

  • Disc Harrow Bearing Ball Bearing 1" bore Side View
  • Disc Harrow Bearing Ball Bearing 1" bore Front View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1"
    Outer Diameter80mm
    Width1-7/16"

    Construction

    MaterialChrome Steel SAE-52100
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load4,500 lbs
    Dynamic Load8,300 lbs
    Speed Limit500 RPM

    Interchange numbers 14

    • AS4508BK
    • SQ208-100
    • 4508B2TR16S
    • DHC208WT5
    • 1AS08-100
    • 10272
    • DC208TT21
    • GA15
    • J9554
    • 208KP3
    • W208K3
    • GW208PPB6
    • 18SG7-2E08E3
    • 1AS08-1
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    W208PPB6 Square Bore Ball Bearing

    Key Features

    W208PPB6 is a Disc Harrow Insert with a Tri-Ply Seal Radial Ball Bearing, a Non-Relubricatable type and a Square Bore with Cylindrical Outer Diameter. This bearing comes with a drilled hole in the groove and pre-lubricated with grease to be ready for use upon arrival.

    Applications / Industries

    W208PPB6 Ball Bearings are used in a range of applications from Agricultural Machinery to Lilliston 15-50-025 and Roanoke 6585 Pickup Reel for Peanut Combine, Bush Hog Pick Up Assembly for 1500, 1600 Peanut Combines, John Deer, Conveying Equipment, Electric Motors, CNC Machinery, Mining Equipment, Robotics, Dental Equipment, Rolling Mills, Ship Rudder Shafts, and Aggregate Crushers, among others.
