2 Bolt Flange Bearings

1-1/8" Bore Oval Ductile Flange Bearing SAFTD206-18

SKU: SAFTD206-18

Free shipping on most orders
Ships from Glendale, CA

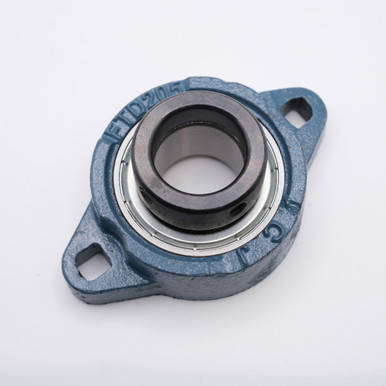

SAFTD206-18 Oval Ductile Flange Bearing 1-1/8" Bore Front View

SAFTD206-18 Oval Ductile Flange Bearing 1-1/8" Bore Angled View

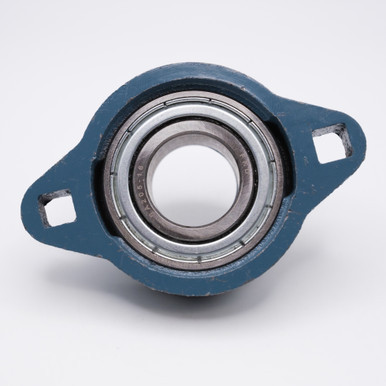

SAFTD206-18 Oval Ductile Flange Bearing 1-1/8" Bore Bottom View

Quantity

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose the quantity you need.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	1-1/8"
Overall Length	113mm
Overall Height	79mm
Bolt-hole spacing	90mm

Construction

Bearing Material	Chrome Steel SAE-52100
Housing Material	Cast Iron
Lubrication	Chevron SRI-2 Grease
Country of Origin	China

Performance

Static Load	2,500 lbs
Dynamic Load	4,300 lbs
Speed Limit	5,300 RPM

Interchange numbers 4

SAFDT206-18D
VFTD-1-1/8
GVFTD-1-1/8
GVFTDR-1-1/8

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

SAFTD206-18 2-Bolt Flange Bearing Locking Collar Bearing

Key Features

SAFTD206-18 2-Bolt Flange Bearing has a combination of an eccentric locking collar insert bearing and 2-bolt ductile flange housing Ball Bearing. Eccentric Self-Locking features a machined collar and bearing inner ring which act as mating cams when assembled on the shaft. The single set screw in the collar secures the position of the eccentric collar and does less damage to the shaft than a normal set screw lock. This locking method is recommended for most applications except where reversing shaft rotation is involved. SAFTD206-18 comes pre-lubricated with Grease, ready for use upon delivery.

Applications/Industries

SAFTD206-18 2-Bolt Flange Bearings are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Automotive, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, among others.
