Product Description

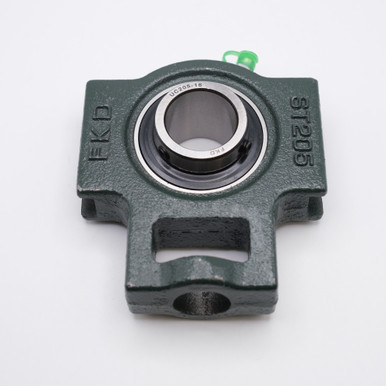

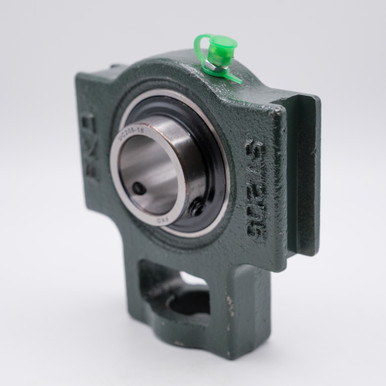

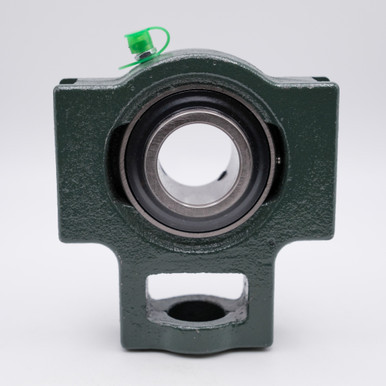

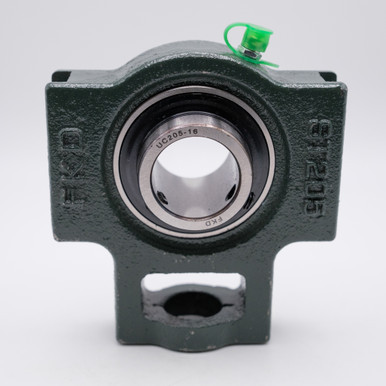

UCST205-15 Bearing Wide Slot Take-Up Bearing Unit has a wide inner race with a set screw locking and a normal duty housing. This specific bearing UCT Wide Slot Take-Up Bearing Unit allows adjustable and free mobility of the unit due to a sliding slot at the side of the housing. It is most suitable when used to the tension bearing for the belt conveyor or by placing where the shaft distance must be adjusted.
Common usage for UCST205-15 Take-up Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.
Match#: UCST205-15, UCST205-015D1
Product Videos
Custom Field
Bore Size 15/16"
Slot Width 2-63/64" (76mm)
Base to Center 2-7/16" (62mm)
Rod End Diameter 3/4" (19mm)
Slot Size 17/32" (13.5mm)
Static Load 1,750 lbs
Dynamic Load 3,140 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers UCST205-15, UCST205-015D1
Speed Limit 6,250 RPM
