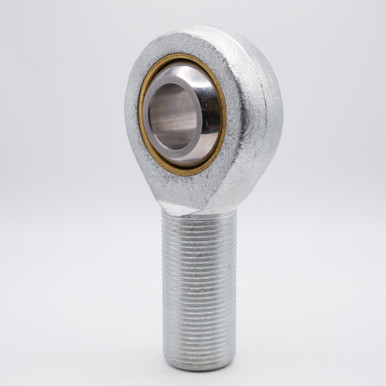

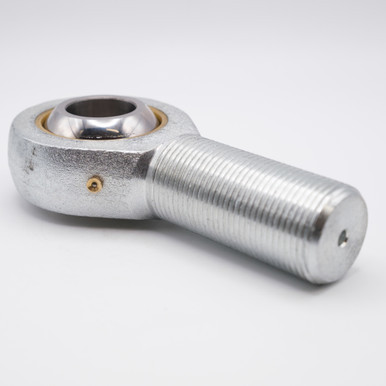

POSB6L Pilloball Male Rod End Bearing Left Hand Thread 3/8" Bore

Write a Review

SKU:: POSB6L
Minimum Purchase:: 50 units
Bore Size:: 3/8" (9.525mm)
Base to Center:: 1-15/16" (49.23mm)
Thread:: -24UNC ( .3750")
Overall Height:: 2-7/16" (61.93mm)
Outer Diameter:: 1" (25.40mm)
Static Load:: 4,856 lbs
Dynamic Load:: 2,075 lbs
Ball Material:: Chrome Steel
Housing Material:: Nickel Plated
Interchange Numbers:: HML6, HML6G, TREL-6, TREL6N, TREL-6N, MB-6, MB-6Z, POSB6LZ
Thread Direction:: Left Hand

POSB6L Bearing is a Rod End PilloBall Insert Bearing, Left Handed Thread and Zinc Plated

Match #: HML6, HML6G, TREL-6, TREL6N, TREL-6N, MB-6, MB-6Z, POSB6LZ

Bore Size 3/8" (9.525mm)

Base to Center 1-15/16" (49.23mm)

Thread -24UNC ( .3750")

Overall Height 2-7/16" (61.93mm)

Outer Diameter 1" (25.40mm)

Static Load 4,856 lbs

Dynamic Load 2,075 lbs

Ball Material Chrome Steel

Housing Material Nickel Plated

Interchange Numbers HML6, HML6G, TREL-6, TREL6N, TREL-6N, MB-6, MB-6Z, POSB6LZ

Thread Direction Left Hand
