    • POSB3 Pilloball Male Rod End Bearing Right Hand Thread 3/16" Bore

    Write a Review
    SKU:
    POSB3
    Minimum Purchase:
    50 units
    Bore Size:
    3/16" (4.826mm)
    Base to Center:
    1-1/4" (31.75mm)
    Thread:
    -32UNF ( .1900")
    Overall Height:
    1-9/16" (39.70mm)
    Outer Diameter:
    5/8" (15.88mm)
    Static Load:
    1,090 lbs
    Dynamic Load:
    778 lbs
    Ball Material:
    Chrome Steel
    Housing Material:
    Nickel Plated
    Interchange Numbers:
    HM3, HM3G, TRE-3, TRE3N, TRE-3N, MM-3, MM-3Z, POSB3Z
    Thread Direction:
    Right Hand

    Product Description

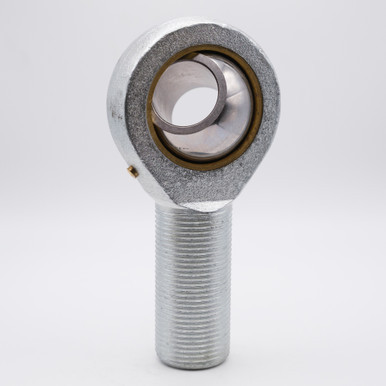

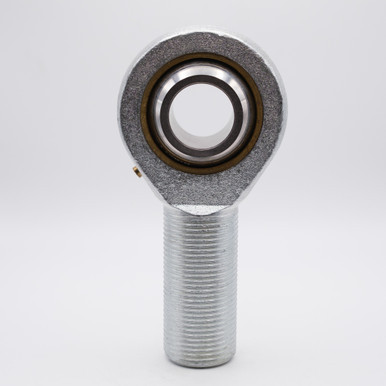

    POSB3 Bearing is a Rod End PilloBall Insert Bearing, Right Handed Thread and Zinc Plated

    Match #: HM3, HM3G, TRE-3, TRE3N, TRE-3N, MM-3, MM-3Z, POSB3Z

    Product Videos

    Custom Field

    Bore Size 3/16" (4.826mm)
    Base to Center 1-1/4" (31.75mm)
    Thread -32UNF ( .1900")
    Overall Height 1-9/16" (39.70mm)
    Outer Diameter 5/8" (15.88mm)
    Static Load 1,090 lbs
    Dynamic Load 778 lbs
    Ball Material Chrome Steel
    Housing Material Nickel Plated
    Interchange Numbers HM3, HM3G, TRE-3, TRE3N, TRE-3N, MM-3, MM-3Z, POSB3Z
    Thread Direction Right Hand
