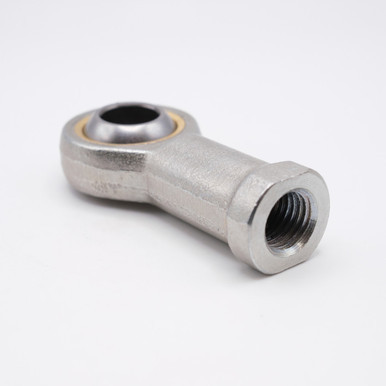

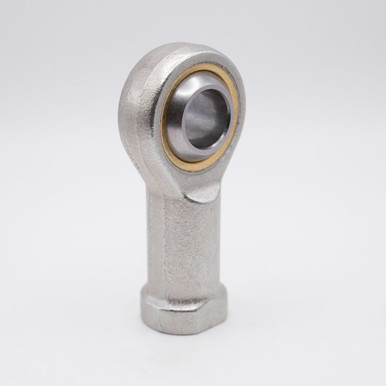

    • PHS8ECL 8mm Maintenance-Free Type Pilloball Female Rod End Bearing Left Hand Thread

    Write a Review
    SKU:
    PHS8ECL
    Minimum Purchase:
    50 units
    Bore Size:
    8mm
    Base to Center:
    1-27/64" (36mm)
    Thread:
    M8x1.25
    Overall Height:
    1-27/32" (47mm)
    Outer Diameter:
    55/64" (22mm)
    Static Load:
    1,745 lbs
    Dynamic Load:
    3,147 lbs
    Thread Direction:
    Left Hand

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance-free.

    PHS8ECL, which has a female thread in the body, is available.

    Product Videos

    Custom Field

    Bore Size 8mm
    Base to Center 1-27/64" (36mm)
    Thread M8x1.25
    Overall Height 1-27/32" (47mm)
    Outer Diameter 55/64" (22mm)
    Static Load 1,745 lbs
    Dynamic Load 3,147 lbs
    Thread Direction Left Hand
