Product Description

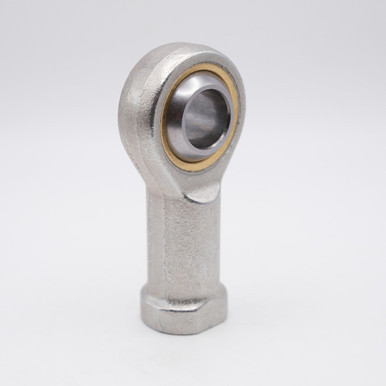

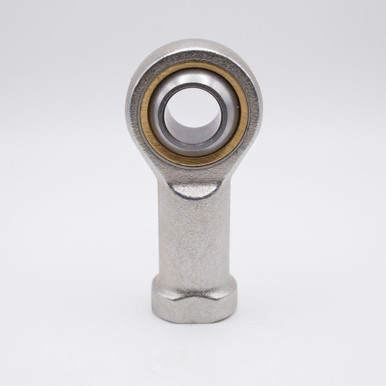

This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.
A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance-free.
PHS14ECL, which has a female thread in the body, is available.
Product Videos
Custom Field
Bore Size 14mm
Base to Center 2-1/4" (57mm)
Thread M14x2
Overall Height 2-29/32" (74mm)
Outer Diameter 1-11/32" (34mm)
Static Load 3,867 lbs
Dynamic Load 7,554 lbs
Thread Direction Left Hand
