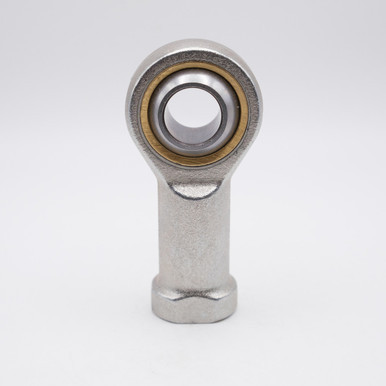

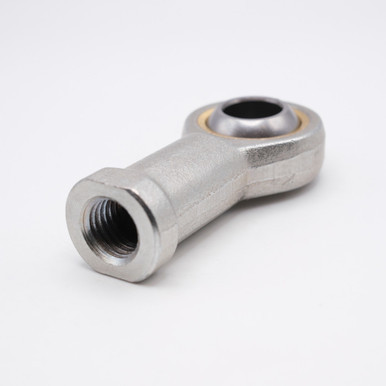

    • PHS10ECL 10mm Maintenance-Free Type Pilloball Female Rod End Bearing Left Hand Thread

    Write a Review
    SKU:
    PHS10ECL
    Minimum Purchase:
    50 units
    Bore Size:
    10mm
    Base to Center:
    1-11/16" (43mm)
    Thread:
    M10x1.5
    Overall Height:
    1-13/64" (56mm)
    Outer Diameter:
    1-1/32" (26mm)
    Static Load:
    2,360 lbs
    Dynamic Load:
    4,406 lbs
    Thread Direction:
    Left Hand

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance-free.

    PHS10ECL, which has a female thread in the body, is available.

    Product Videos

    Custom Field

    Bore Size 10mm
    Base to Center 1-11/16" (43mm)
    Thread M10x1.5
    Overall Height 1-13/64" (56mm)
    Outer Diameter 1-1/32" (26mm)
    Static Load 2,360 lbs
    Dynamic Load 4,406 lbs
    Thread Direction Left Hand
