Product Description

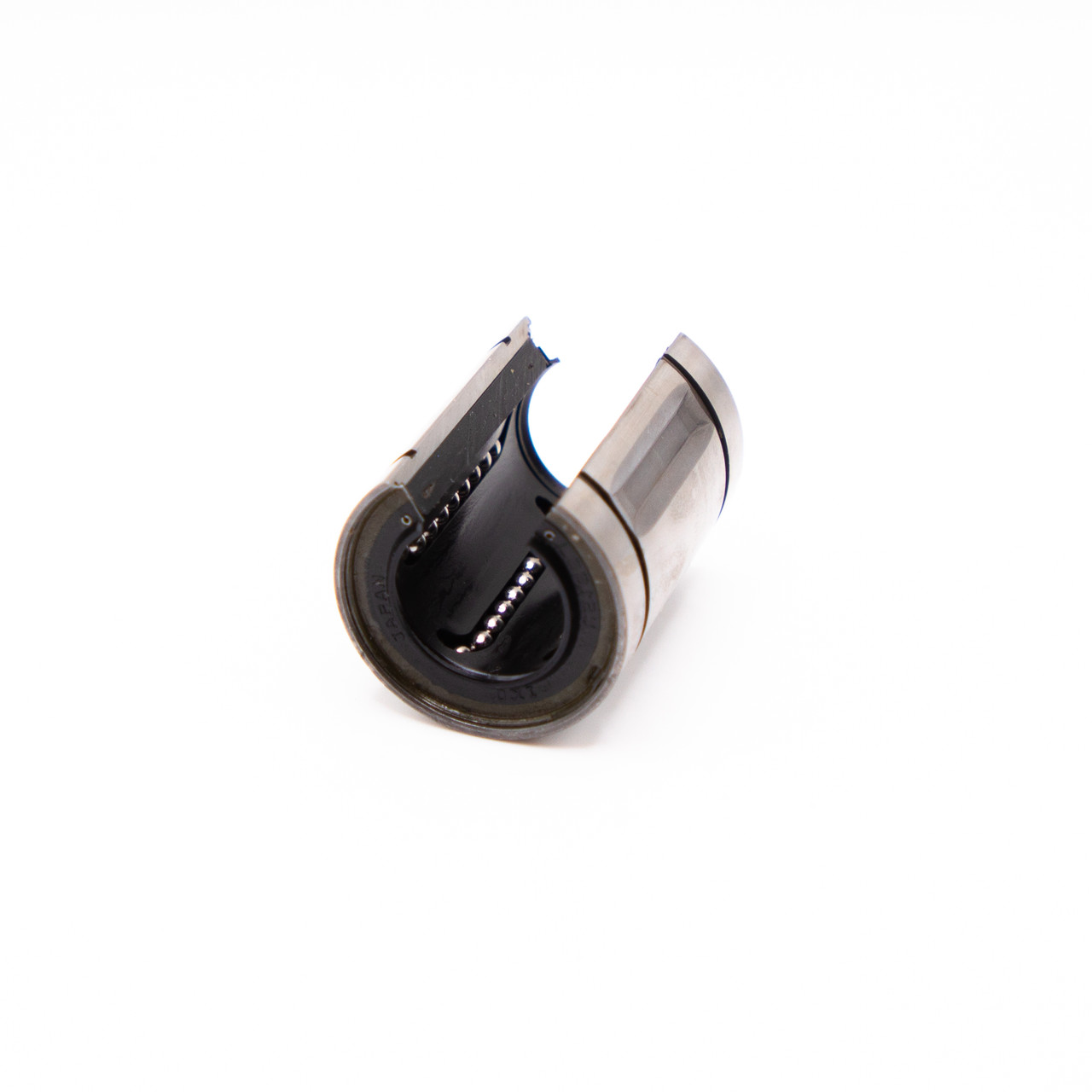

LM4UUOP Precision Motion Linear Ball Bushing Bearing Open Type and Rubber Sealed on Both Sides
Unlike typical bearings that enable circular motion, linear bearings promote movement in a straight line. This is generally accomplished with the use of ball or roller bearings loaded onto a track that supports a surface that can be moved back and forth, such as a table. A common type of linear bearing is found in a filing cabinet, permitting the drawers to be opened and closed with ease. These bearings are perfect for linear motion on your 3D Printer, Robotic Systems, Gym Equipment, Printing Press, Motion Mechanism, CNC Machinery or any other applications.
Match #: SM4GUUOP, LBD4UUOP, N4VUUOP, L4OPUU, TB4OPUU, KLM4PLL, SDM4YUU-OP, LM4GUUOP
Product Videos
Custom Field
Inner Diameter 4mm
Outer Diameter 5/16" (8mm)
Length 15/32" (12mm)
Static Load 29 lbs
Dynamic Load 20 lbs
Interchange Numbers SM4GUUOP, LBD4UUOP, N4VUUOP, L4OPUU, TB4OPUU, KLM4PLL, SDM4YUU-OP, LM4GUUOP
Bearing Material Chrome Steel with Resin Retainer
Lubrication Chevron SRI-2 Grease
