    • KP001 Mini Zinc Set Screw Pillow Block Bearing 12mm Bore
  • KP001 Mini Zinc Set Screw Pillow Block Bearing 12mm Bore Back View

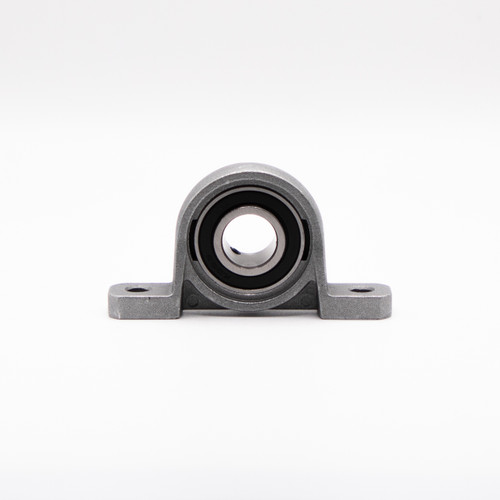

  • KP001 Mini Zinc Set Screw Pillow Block Bearing 12mm Bore Front View
  • KP001 Mini Zinc Set Screw Pillow Block Bearing 12mm Bore Back View KP001 Mini Zinc Set Screw Pillow Block Bearing 12mm Bore Front View

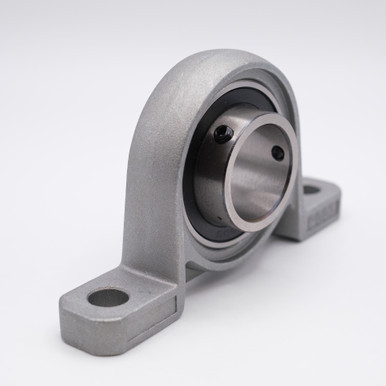

    KP001 Mini Zinc Set Screw Pillow Block Bearing 12mm Bore

    (You save )
    Write a Review
    SKU:
    KP001
    Minimum Purchase:
    50 units
    Bore Size:
    12mm
    Bolt Hole to Bolt Hole:
    2-13/64" (56mm)
    Base to Center:
    3/4" (19mm)
    Static Load:
    5 lbs
    Dynamic Load:
    11 lbs
    Housing Material:
    Zinc Alloy
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Speed Limit:
    18,000 RPM
    Interchange Numbers:
    KP01UU, KP01U, KP001RS, KVP001LL, KP001-2RS, UP001UU

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    KP001 bearing is Mini Zinc Plated Pillow Block with Set Screw Locking Ball Bearing in Unit, Both Sides Rubber Sealed and Pre-Lubricated with Grease.

    Usage: HVAC systems, Robotic Systems, Motorcycle, Motor, Pumps, Fan, Air Conditioner, Microwave Oven, Sewing Machine, Massage Chairs, Agriculture Machinery, Fitness Equipment, Washing Machine, Office Equipment.

    Pillow Block Ball Bearing is widely used in various of Robotic systems, HVAC systems, Machinery, Food Machines, Pharmaceutical Machinery, Conveyor Systems, Film Processing Machinery, Spin Machine, Printing Machinery, Machinery and Equipment, Conveyors, Machine Manufacturing, Exhaust Fan, Heating/Cooling Systems, Industrial HVAC equipment, Simulation systems and much more.

    Match#: KP01UU, KP01U, KP001RS, KVP001LL, KP001-2RS, UP001UU

    Product Videos

    Custom Field

    Bore Size 12mm
    Bolt Hole to Bolt Hole 2-13/64" (56mm)
    Base to Center 3/4" (19mm)
    Static Load 5 lbs
    Dynamic Load 11 lbs
    Housing Material Zinc Alloy
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Speed Limit 18,000 RPM
    Interchange Numbers KP01UU, KP01U, KP001RS, KVP001LL, KP001-2RS, UP001UU
