Product Description

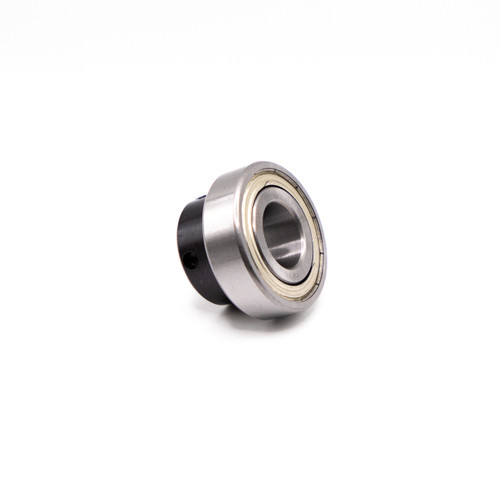

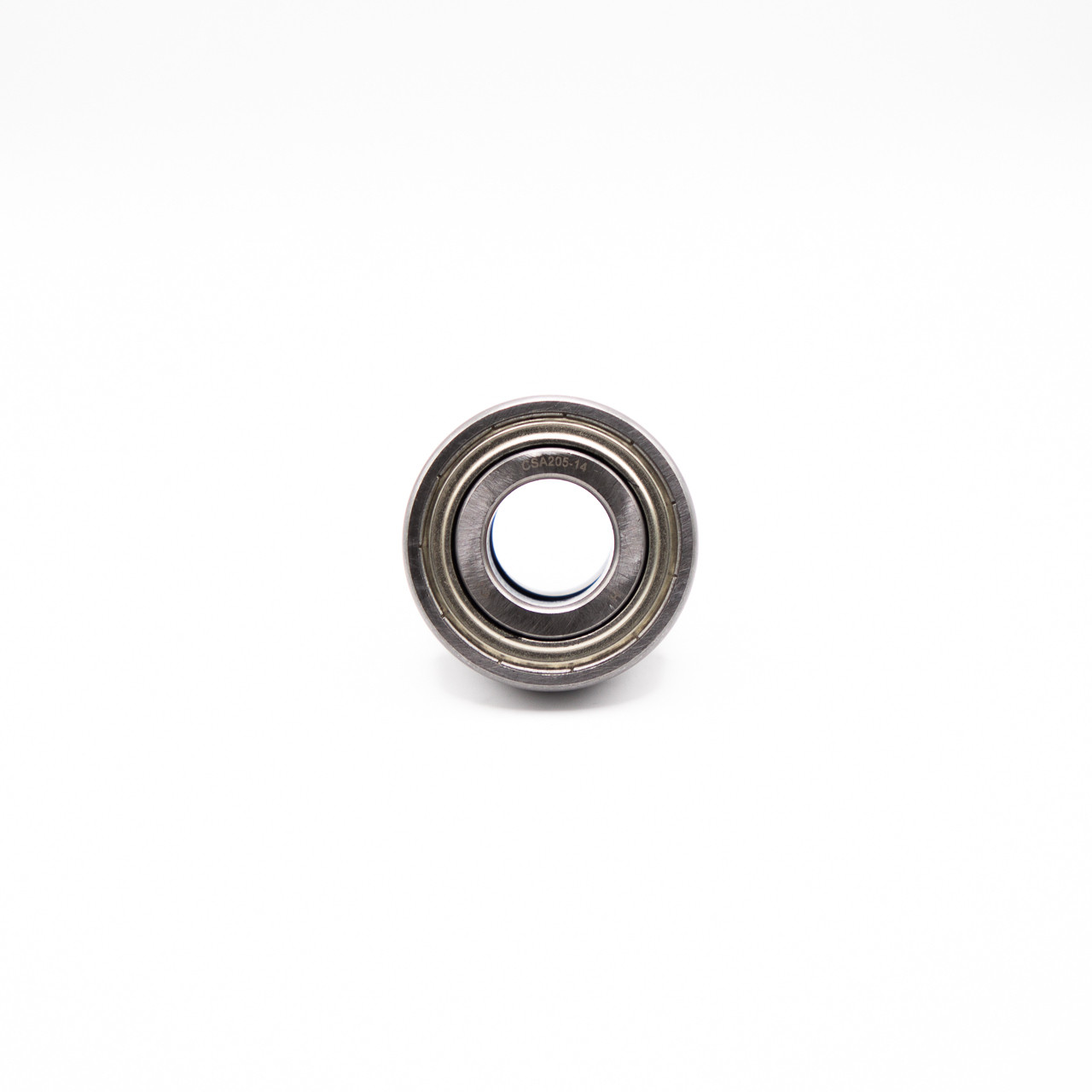

Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease
CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.
CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.
Match #: FHR208-25, KHR208-25, AELS208-025NProduct Videos
Custom Field
Inner Diameter 1-9/16"
Outer Diameter 80mm
Inner Race Width 18mm
Outer Race Width 43.7mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 4,450 lbs
Dynamic Load 7,280 lbs
Speed Limit 4,000 RPM
Interchange Numbers FHR208-25, KHR208-25, AELS208-025N
