Product Description

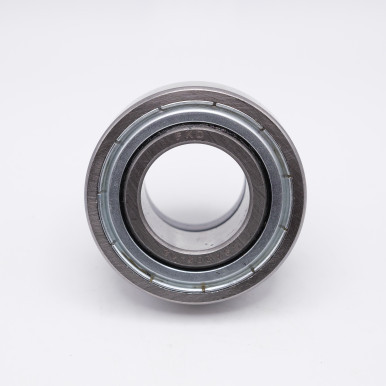

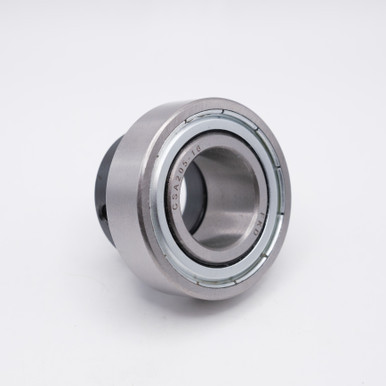

Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease
CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.
CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.
Match #: FHR207-23, KHR207-23, AELS207-023NProduct Videos
Custom Field
Inner Diameter 1-7/16"
Outer Diameter 72mm
Inner Race Width 17mm
Outer Race Width 38.9mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 3,440 lbs
Dynamic Load 5,780 lbs
Speed Limit 4,500 RPM
Interchange Numbers FHR207-23, KHR207-23, AELS207-023N
