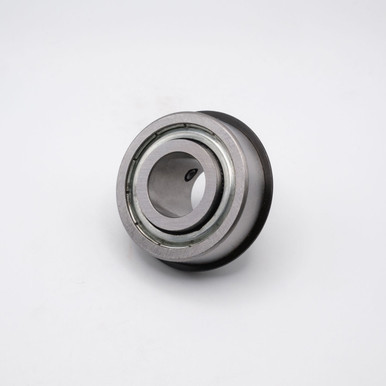

• 7612-DLG Felt Seal Ball Bearing 3/4x1-3/4x1.092 Angled View
  • 7612-DLG Felt Seal Ball Bearing 3/4x1-3/4x1.092 Angled View
  • 7612-DLG Felt Seal Ball Bearing 3/4x1-3/4x1.092 Angled View
  • 7612-DLG Felt Seal Ball Bearing 3/4x1-3/4x1.092 Angled View
  • 7612-DLG Felt Seal Ball Bearing 3/4x1-3/4x1.092 Top View
  • 7612-DLG Felt Seal Ball Bearing 3/4x1-3/4x1.092 Bottom View

    • 7612-DLG Felt Seal Ball Bearing 3/4x1-3/4x1.092 S8703-88 7612DLG

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    7612DLG
    Minimum Purchase:
    100 units
    Inner Diameter:
    3/4"
    Outer Diameter:
    1-3/4"
    Width:
    1.092"
    Closure Type:
    Metal Shielded
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    657 lbf
    Dynamic Load:
    1,125 lbf
    Speed Limit:
    6,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    7612-DLG, 76E12, S8703-88, WE512, 4768K6, 7612DLG, 7612DL

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    7612-DLG Felt Seal Ball Bearing

    Key Features

    7612-DLG is a Felt Sealed Single Row Ball Bearing with an extended inner ring and comes pre-lubricated with Grease allowing for use upon delivery. Felt Seals are designed to prevent dirt and other contaminants from entering the bearing while retaining the lubricant inside which extends its bearing life and maintains its performance capabilities. This 7612-DLG Felt Seal Ball Bearings also features a flat outer race with a snap ring to allow for easier locating on a housing and preventing the migration of components from their place while operating in an application.

    Applications / Industries

    7612-DLG Felt Seal Bearings are used in a range of applications from Construction Machines, Agricultural Equipment, Gardening Equipment, Automotives, Engines, Transmissions, Transfer Case, Power Steering, among others.

    Product Videos

    Custom Field

    Inner Diameter 3/4"
    Outer Diameter 1-3/4"
    Width 1.092"
    Closure Type Metal Shielded
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 657 lbf
    Dynamic Load 1,125 lbf
    Speed Limit 6,000 RPM
    Country of Origin China
    Interchange Numbers 7612-DLG, 76E12, S8703-88, WE512, 4768K6, 7612DLG, 7612DL
