Product Description

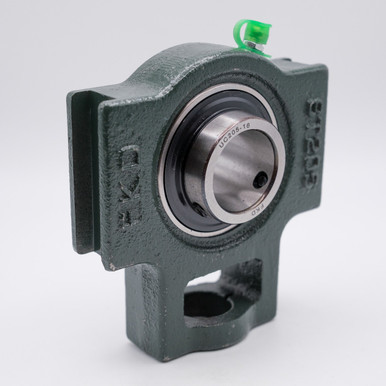

UCST206-18 Bearing Wide Slot Take-Up Bearing Unit has a wide inner race with a set screw locking and normal duty housing. This specific bearing UCT Wide Slot Take-Up Bearing Unit allows adjustable and free mobility of the unit due to a sliding slot at the side of the housing. It is most suitable when used to the tension bearing for the belt conveyor or by placing where the shaft distance must be adjusted.
Common usage for UCST206-18 Take-up Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.
Match#: UCST206-18, UCST206-018D1
Product Videos
Custom Field
Bore Size 1-1/8"
Slot Width 3-1/2" (89mm)
Base to Center 2-3/4" (70mm)
Rod End Diameter 55/64" (22mm)
Slot Size 17/32" (13.5mm)
Static Load 2,500 lbs
Dynamic Load 4,300 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers UCST206-18, UCST206-018D1
Speed Limit 5,300 RPM
