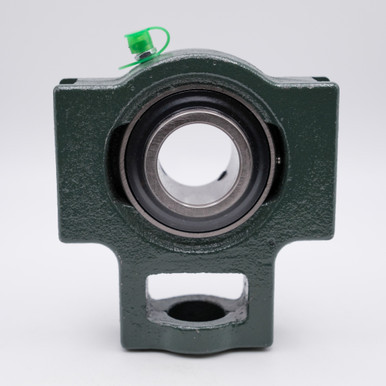

    UCST201-8 Take Up Flanged Mounted Bearing 1/2" Bore

    (You save )
    Write a Review
    SKU:
    UCST201-8
    Minimum Purchase:
    100 units
    Bore Size:
    1/2"
    Slot Width:
    2-63/64" (76mm)
    Base to Center:
    2-13/32" (61mm)
    Rod End Diameter:
    3/4" (19mm)
    Slot Size:
    17/32" (13.5mm)
    Static Load:
    2,500 lbs
    Dynamic Load:
    2,900 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    UCST201-8, UCST204-008D1
    Speed Limit:
    8,800 RPM

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    UCST201 Bearing Wide Slot Take-Up Bearing Unit has a wide inner race with a set screw locking and a normal duty housing. This specific bearing UCT Wide Slot Take-Up Bearing Unit allows adjustable and free mobility of the unit due to a sliding slot at the side of the housing. It is most suitable when used to the tension bearing for the belt conveyor or by placing where the shaft distance must be adjusted.

    Common usage for UCST201 Take-up Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

    Match#: UCST201-8, UCST204-008D1

    Product Videos

    Custom Field

    Bore Size 1/2"
    Slot Width 2-63/64" (76mm)
    Base to Center 2-13/32" (61mm)
    Rod End Diameter 3/4" (19mm)
    Slot Size 17/32" (13.5mm)
    Static Load 2,500 lbs
    Dynamic Load 2,900 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers UCST201-8, UCST204-008D1
    Speed Limit 8,800 RPM
