Product Description

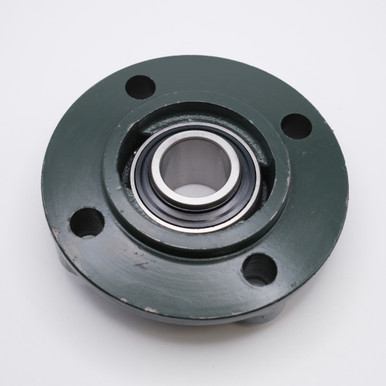

UCFC209 Round Flange 4 Bolt Flange Light Duty Housing with Set Screw Bearing in Unit, Pre-Lubricated with Grease and Grease Feeding Access
UCFC209 flange mounted bearing has a cast iron flange housing, four bolt holes, and a 45mm inside diameter. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The unit is secured to the shaft with set screws to prevent slippage. These bearings are most commonly used in mechanical equipment where moderate loads and shaft speeds are involved where the shaft and mounting surface are perpendicular to each other.
Match#: VFC-209, UCFC209
Product Videos
Custom Field
Bore Size 45mm
Bolt Hole to Bolt Hole 3-43/64" (94mm)
Static Load 4,610 lbs
Dynamic Load 7,390 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers VFC-209, UCFC209
Speed Limit 3,700 RPM
