Product Description

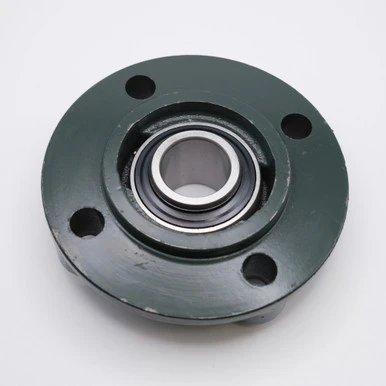

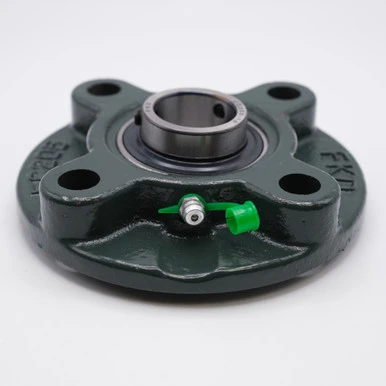

UCFC208 Round Flange 4 Bolt Flange Light Duty Housing with Set Screw Bearing in Unit, Pre-Lubricated with Grease and Grease Feeding Access
UCFC208 flange mounted bearing has a cast iron flange housing, four bolt holes, and a 40mm inside diameter. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The unit is secured to the shaft with set screws to prevent slippage. These bearings are most commonly used in mechanical equipment where moderate loads and shaft speeds are involved where the shaft and mounting surface are perpendicular to each other.
Match#: VFC-208, UCFC208
Product Videos
Custom Field
Bore Size 40mm
Bolt Hole to Bolt Hole 3-11/32" (84.8mm)
Static Load 4,450 lbs
Dynamic Load 7,280 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers VFC-208, UCFC208
Speed Limit 4,000 RPM
