Product Description
UCFC205-16 Round Flange 4 Bolt Flange Light Duty Housing with Set Screw Bearing in Unit, Pre-Lubricated with Grease and Grease Feeding Access

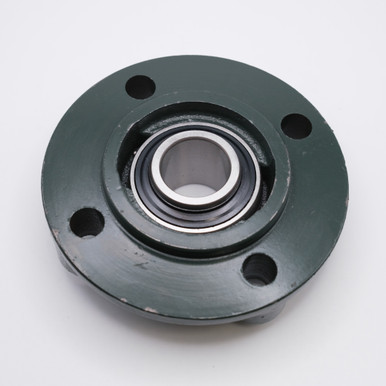

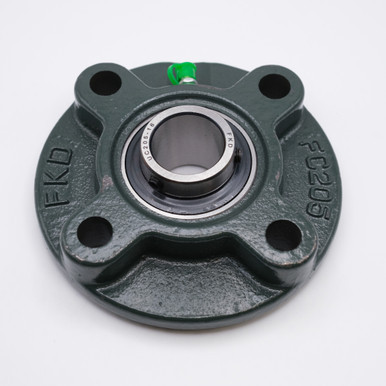

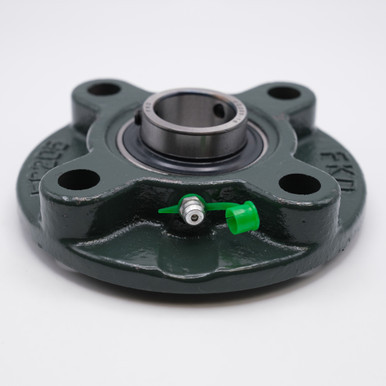

UCFC205-16 flange mounted bearing has a cast iron flange housing, four bolt holes, and a 1" inside diameter. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The unit is secured to the shaft with set screws to prevent slippage. These bearings are most commonly used in mechanical equipment where moderate loads and shaft speeds are involved where the shaft and mounting surface are perpendicular to each other.
Match#: SFC-16, UCFC205-100T, UCFC205-16, UCFC205-16NP, VFC-216, FC-SC-100, UCFC205-100D1
Product Videos
Custom Field
Bore Size 1"
Bolt Hole to Bolt Hole 2-1/2" (63.6mm)
Static Load 1,750 lbs
Dynamic Load 3,140 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers SFC-16, UCFC205-100T, UCFC205-16, UCFC205-16NP, VFC-216, FC-SC-100, UCFC205-100D1
Speed Limit 6,250 RPM
