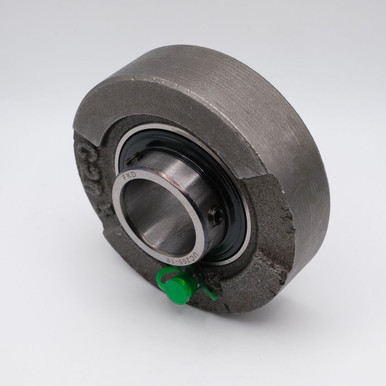

UCC213-40 Cylindrical Cartridge Bearing 2-1/2x140x65.1

(You save )
(No reviews yet) Write a Review
SKU:
UCC213-40
Minimum Purchase:
100 units
Inner Diameter:
2-1/2"
Outer Diameter:
140mm
Width:
65.1mm
Static Load:
9,015 lbs
Dynamic Load:
12,859 lbs
Housing Material:
Cast Iron
Bearing Material:
Chrome Steel
Lubrication:
Chevron SRI-2 Grease
Speed Limit:
2,600 RPM

Adding to cart… category.add_cart_announcement
Add to Wish List
  • Create New Wish List
  • Facebook
  • Email
  • Print
  • Twitter
  • Pinterest
  • Overview
  • Reviews

Product Description

UCC200 Series is Cylindrical Cartridge Units With Cast Iron Housing

Common usage for UCC Cylindrical Cartridge Units With Cast Iron Housing includes the following: Agricultural, Automotive, Construction, Sporting and Consumer Goods, Pump, Manufacturing Equipment, Fan Assembles, Farm Machinery, Conveyor, Feed Mill, Economical Housed Bearing, and many other Industrial Equipments.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations; mounted bearings can be one or two pieces. They can have an extended inner ring and locking device and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block) and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Product Videos

Custom Field

Inner Diameter 2-1/2"
Outer Diameter 140mm
Width 65.1mm
Static Load 9,015 lbs
Dynamic Load 12,859 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Speed Limit 2,600 RPM
