Product Description

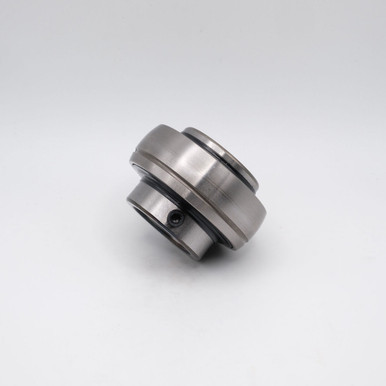

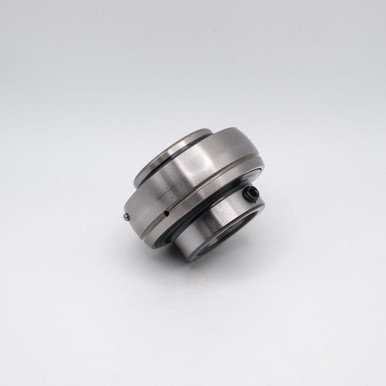

Insert Set Screw Ball Bearing With Lubricating Groove Access, Sealed & Pre-Lubricated, Spherical Outer to Insert in Housing
UC200 Insert Bearing Series has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring. Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative.
The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.
The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.
Match #: UC211-35S
Product Videos
Custom Field
Inner Diameter 2-3/16"
Outer Diameter 100mm
Inner Race Width 25mm
Overall Race Width 55.6mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 6,607 lbs
Dynamic Load 9,743 lbs
Speed Limit 3,100 RPM
Interchange Numbers UC211-35S
