Product Description

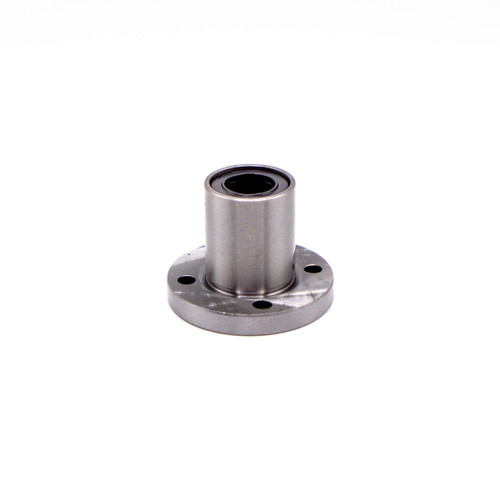

SSW6UU Precision Super Linear Motion Self Aligning Ball Bushing Bearing Polyamide Resin Retainer
The Super Ball Bushing bearing is self-aligning, lightweight and adjustable with a low coefficient of friction.
The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications.
Radially floating bearing plates. When installed in an adjustable housing, the Super Ball Bushing Bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement.
Match #: TW6UU, Super-6DD, LMBS6UU, KNZ6PP, SSW6GUU
Product Videos
Custom Field
Bore Size 3/8"
Outer Diameter 5/8" (15.88mm)
Length 7/8" (22.23mm)
Static Load 120 lbs
Dynamic Load 95 lbs
Interchange Numbers TW6UU, Super-6DD, LMBS6UU, KNZ6PP, SSW6GUU
Bearing Material Chrome Steel
