• POSB3L Rod-End Bearing Rod 3/4 x Bore 3/16 Right Angled View
  • POSB3L Rod-End Bearing Rod 3/4 x Bore 3/16 Left Angled View
  • POSB3L Rod-End Bearing Rod 3/4 x Bore 3/16 Angled Bore View
  • POSB3L Rod-End Bearing Rod 3/4 x Bore 3/16 Front View

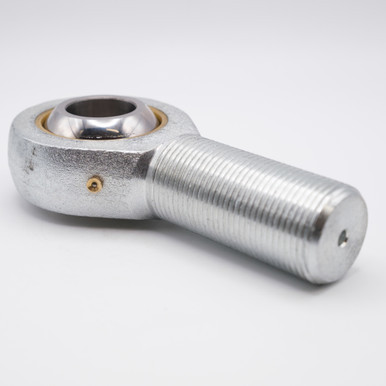

  • POSB3L Rod-End Bearing Rod 3/4 x Bore 3/16 Flat Side View

    • POSB3L Pilloball Male Rod End Bearing Left Hand Thread 3/16" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    POSB3L
    Minimum Purchase:
    100 units
    Bore Size:
    3/16" (4.826mm)
    Base to Center:
    1-1/4" (31.75mm)
    Thread:
    -32UNC ( .1900")
    Overall Height:
    1-9/16" (39.70mm)
    Outer Diameter:
    5/8" (15.88mm)
    Static Load:
    1,090 lbs
    Dynamic Load:
    778 lbs
    Ball Material:
    Chrome Steel
    Housing Material:
    Nickel Plated
    Interchange Numbers:
    HML3, HML3G, TREL-3, TREL3N, TREL-3N, MB-3, MB-3Z, POSB3LZ
    Thread Direction:
    Left Hand

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    POSB3L Bearing is a Rod End PilloBall Insert Bearing, Left Handed Thread and Zinc Plated

    Match #: HML3, HML3G, TREL-3, TREL3N, TREL-3N, MB-3, MB-3Z, POSB3LZ

    Product Videos

    Custom Field

    Bore Size 3/16" (4.826mm)
    Base to Center 1-1/4" (31.75mm)
    Thread -32UNC ( .1900")
    Overall Height 1-9/16" (39.70mm)
    Outer Diameter 5/8" (15.88mm)
    Static Load 1,090 lbs
    Dynamic Load 778 lbs
    Ball Material Chrome Steel
    Housing Material Nickel Plated
    Interchange Numbers HML3, HML3G, TREL-3, TREL3N, TREL-3N, MB-3, MB-3Z, POSB3LZ
    Thread Direction Left Hand
