Product Description

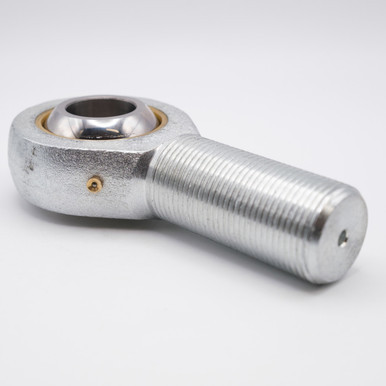

This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.
A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance- free.
POS20EC, which has a male thread on the body, is available.
Product Videos
Custom Field
Bore Size 20mm
Base to Center 3-5/64" (78mm)
Thread M20x1.5
Overall Height 3-31/32" (101mm)
Outer Diameter 1-13/16" (46mm)
Static Load 6,744 lbs
Dynamic Load 13,848 lbs
Thread Direction Right Hand
