Product Description

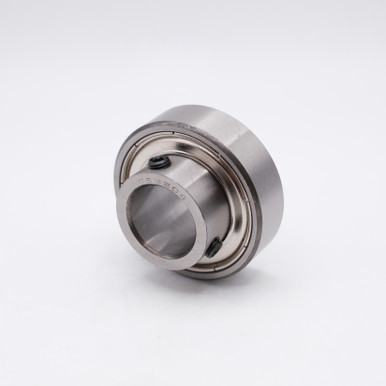

CSB200 Series Bearing is Precision Insert Ball Bearing Cylindrical Outer with Set Screw and Pre-Lubricated with Grease
CSB200 Series Insert Bearing has two set screws on the inner race for securing to the shaft. It has a cylindrical outer race that is pre-lubed and engineered for light duty use. This type bearing is self-aligning for the standard load capacity. The standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite to the collar to make it interchangeable to all manufacturers which makes it more efficient.
Match#: FHSR206-19, BR206-19, SLS-119, CSB206-19N, SL-19
Product Videos
Custom Field
Inner Diameter 1-3/16"
Outer Diameter 62mm
Inner Race Width 16mm
Outer Race Width 30mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 2,500 lbs
Dynamic Load 4,300 lbs
Speed Limit 5,300 RPM
Interchange Numbers FHSR206-19, BR206-19, SLS-119, CSB206-19N, SL-19
