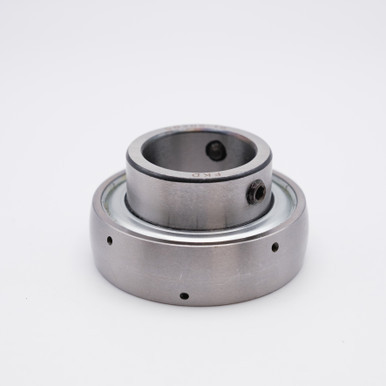

• CSB202-10 Cylindrical Outer Insert Ball Bearing 5/8x40x12mm Right Side View

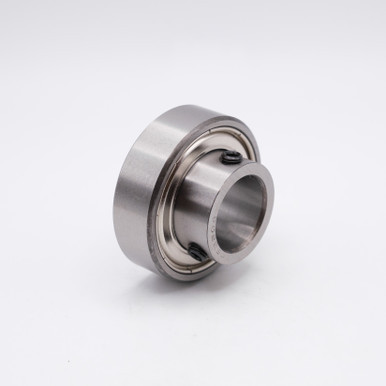

  • CSB202-10 Cylindrical Outer Insert Ball Bearing 5/8x40x12mm Left Side View

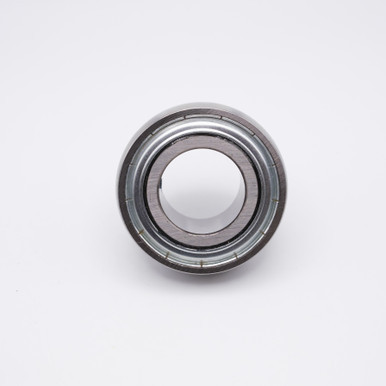

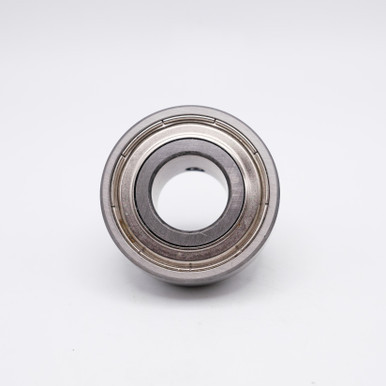

  • CSB202-10 Cylindrical Outer Insert Ball Bearing 5/8x40x12mm Back View

    • CSB202-10 Insert Ball Bearing 5/8x40x22

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    CSB202-10
    Minimum Purchase:
    100 units
    Inner Diameter:
    5/8"
    Outer Diameter:
    40mm
    Inner Race Width:
    12mm
    Outer Race Width:
    22mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,060 lbs
    Dynamic Load:
    2,140 lbs
    Speed Limit:
    8,800 RPM
    Interchange Numbers:
    FHSR202-10, BR202-10, SLS-110, CSB202-10N, SL-10

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    CSB200 Series Bearing is Precision Insert Ball Bearing Cylindrical Outer with Set Screw and Pre-Lubricated with Grease

    CSB200 Series Insert Bearing has two set screws on the inner race for securing to the shaft. It has a cylindrical outer race that is pre-lubed and engineered for light duty use. This type bearing is self-aligning for the standard load capacity. The standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite to the collar to make it interchangeable to all manufacturers which makes it more efficient.

    Match #: FHSR202-10, BR202-10, SLS-110, CSB202-10N, SL-10

    Product Videos

    Custom Field

    Inner Diameter 5/8"
    Outer Diameter 40mm
    Inner Race Width 12mm
    Outer Race Width 22mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,060 lbs
    Dynamic Load 2,140 lbs
    Speed Limit 8,800 RPM
    Interchange Numbers FHSR202-10, BR202-10, SLS-110, CSB202-10N, SL-10
